Don-Jo
4-1/2 x 4-1/2 8 Wire Electric Hinge
$345.63
$432.04Save $86.41/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

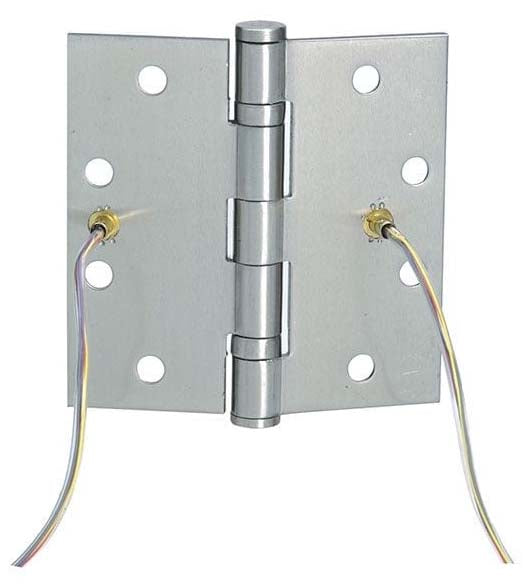

The Don-Jo 8 Wire Electric Door Hinge is a heavy-duty transfer hinge designed for commercial door applications.
The 4-1/2" x 4-1/2" hinge features ball bearings and a Non-Removable Pin (NRP) for enhanced security. It utilizes 8 conductors of 28 gauge wire, rated for 3.5 amps.
Wire leads include 12" on one leaf and 36" on the other. Installation hardware includes machine screws and wood screws, compatible with wood or metal doors.
Material & Finish
Material
Steel
Finish
Satin Chrome
Other
Electrical Wires
(8) 28 gauge wires
Height
4-1/2"
Width
4-1/2"
Corners
Square
Thickness
0.134" (Heavy Duty)
Wood Screws
#12 x 1-1/4"
Machine Screws
#12-24 x 1/2"
