4-1/2 x 4-1/2 4 Wire Electric Hinge
$469.56
$782.60Save $313.04/ unit
Out of Stock ā Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

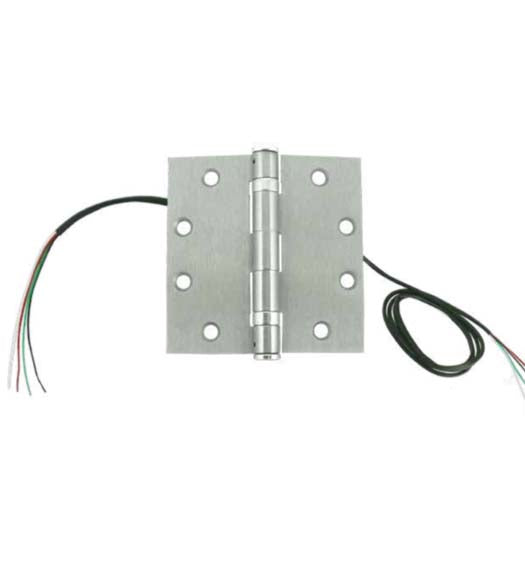

The PDQ 4-1/2 x 4-1/2 Electric Hinge is a heavy-duty, commercial transfer hinge designed for door hardware applications. Constructed from steel and finished in Satin Chrome, this unit accommodates wood or metal door frames.
The hinge features ball bearings and a Non-Removable Pin (NRP) for enhanced security. It accepts four 28 gauge wires and is UL Fire Listed, having passed testing of over 100,000 cycles.
Material & Finish
Material
Steel
Finish
Satin Chrome
Other
Electrical Wires
(4) 28 gauge wires
Height
4-1/2"
Width
4-1/2"
Corners
Square
Thickness
0.134" (Heavy Duty)
Wood Screws
#12 x 1-1/4"
Machine Screws
#12-24 x 1/2"
Warranty
Five (5) year manufacture warranty
Questions about this product? Call 954-776-5340 or send us a message below.
