| Item No: |
EMT-471222 |
| List Price: |
$768.00 |
| Your Price: |
$614.99 |

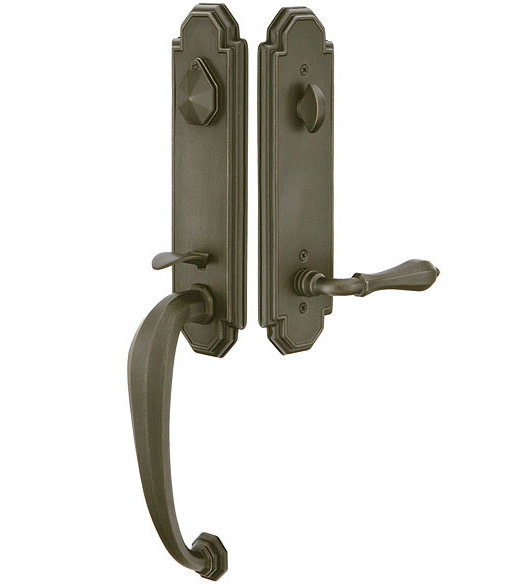

Emtek 471222, Octagon Entry Door Handleset with Covered Deadbolt

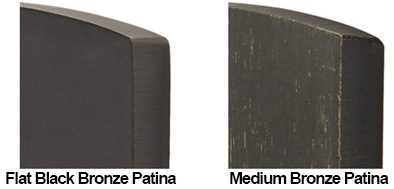

The Octagon Cast Bronze Handleset has an old world look that makes it a great piece for any restoration project. The Octagon Entry Door Handleset with Covered Deadbolt is available in either flat black bronze finish or a medium bronze finish. This Octagon Entry Door Handleset is available as a dummy function or a single cylinder function. This old world handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-7/8 inches thick.
Features for the Lost Wax Cast Bronze Octagon Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Octagon Entrance Handleset with Covered Deadbolt:
- Material: Cast Bronze
- Exterior Plate Height: 17-1/2"
- Exterior Plate Width: 3"
- Exterior Projection: 3-1/8"
- Exterior Grip Clearance: 1-3/4"
- Exterior Grip Thickness: 1-3/4"
- Interior Plate Height: 10-1/2"
- Interior Plate Width: 3"
- Door Thickness: 1-3/4" - 2-7/8" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
- Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
- Emtek 471222 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
