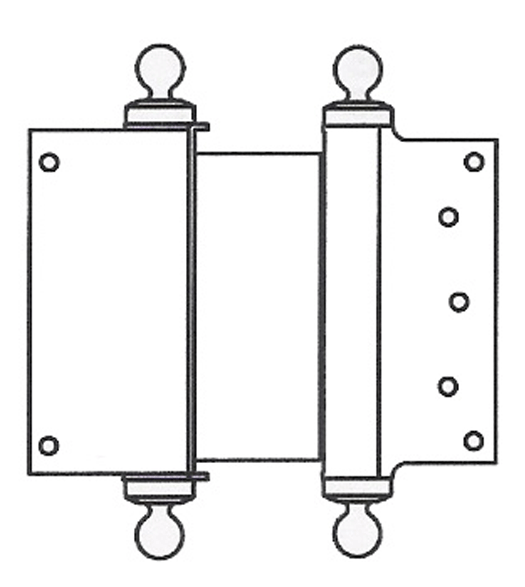

7" Double Acting Spring Hinge with classic ball tips. Box clamp type door flange is attached to door with thrubolts and nuts. Jamb flange is surface applied to door jamb. Available for doors 1-3/8" , 1-1/2", 1-5/8" thick. Packaged with all mounting hardware.

Also available without Ball Tips: Bommer 3024-7 7" Double Acting Spring Hinge

Specifications of the Bommer CL3024-7 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 7"
• Non-Template
• Non-Handed
• Classic Ball Tips
• Door Thickness: Optional 1-3/8" , 1-1/2", 1-5/8" Thick Doors
• Maximum Swing: 90º each direction
• Bommer CL3024-7 Dimension Diagram (PDF)

Bommer CL3024-7 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
CL3024-7	82 lbs	3'-0"	120 lbs	3'-6"	1-3/8", 1-1/2", 1-5/8"	7'-0"
Note: Doorbox clamps are not adjustable. ** These hinges are normally special order 3-5 weeks to ship. Select the thickness of your door below.

Bommer CL3024-7 available for 3 different Door Thickness

Sold as a Pair (2 Hinges).

** These hinges are normally special order 3-5 weeks to ship. Select the thickness of your door below.

Select Door Thickness  CL3024-7-1.375: 1-3/8" Thick Door CL3024-7-1.500: 1-1/2" Thick Door CL3024-7-1.625: 1-5/8" Thick Door   Select Finish  600: Primed For Painting 603: Zinc Plated Add  $68.80 652: Satin Chrome Add  $166.08
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
