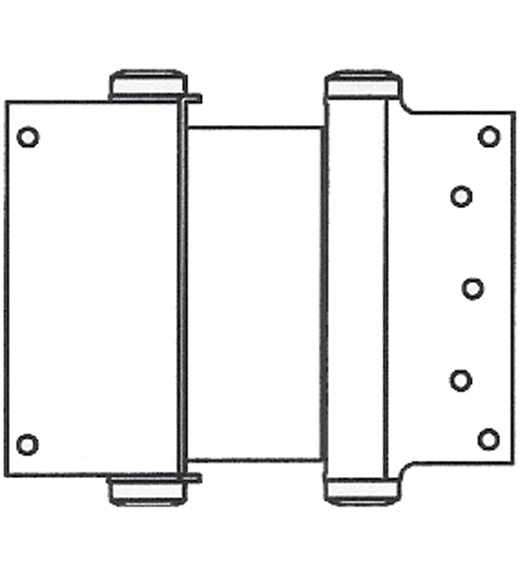

7" Double Acting Spring Hinge. Box clamp type door flange is attached to door with thru-bolts and nuts. Jamb flange is surface applied to door jamb. Available for doors 1-3/8" , 1-1/2", 1-5/8" thick. Packaged with all mounting hardware.

Specifications of the Bommer 3024-7 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 7"
• Non-Template
• Non-Handed
• Door Thickness: Optional 1-3/8" , 1-1/2", 1-5/8" Thick Doors
• Maximum Swing: 90º each direction
• Bommer 3024-7 Dimension Diagram (PDF)

Bommer 3024-7 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3024-7	82 lbs	3'-0"	120 lbs	3'-6"	1-3/8", 1-1/2", 1-5/8"	7'-0"
Note: Doorbox clamps are not adjustable. ** These hinges are normally special order 3-5 weeks to ship. Select the thickness of your door below.

Bommer 3024-7 available for 3 different Door Thickness

Sold as a Pair (2 Hinges).

** This item is Discontinued

Select Door Thickness  3024-7-1.375: 1-3/8" Thick Door 3024-7-1.500: 1-1/2" Thick Door 3024-7-1.625: 1-5/8" Thick Door   Select Finish  600: Primed For Painting 601: Bright Black 603: Zinc Plated Add  $52.96 652: Satin Chrome Add  $127.84
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
