SOSS 218IC Invisible Spring Closer Hinge
The Self-Closing Invisible Hinge is the perfect solution to modern spaces where a clean look is desired. Once installed, this Invisible Spring Closer Hinge cannot be seen when the door is closed. A self-closing hinge, it works much like any spring hinge, it returns the door to the closed position by itself. The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger door hinge installation. For use on on 1-3/4 inch thick wood doors, please use one hinge for every 75 lbs.
Features of the Invisible Hinge Spring Closer:
- Opens a complete 180 degrees.
- Allow one (1) hinge for every 75 lbs of door weight.
- Tension is adjustable by using an allen wrench while the hinge is installed.

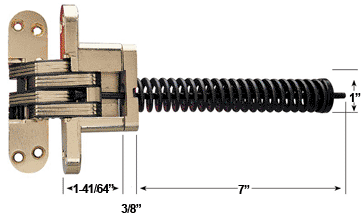

Specifications for the SOSS 218IC Invisible Hinge:
- Body Width: 1-41/64"
- Body Backplate Width: 3/8"
- Spring Length: 7"
- Spring Width: 1"
- Door Thickness: Minimum 1-3/4" Thick Door
- Wood Screws: #10 x 1-1/2"
- Hinge Material: High Strength Steel
- SOSS 218IC Hinge Dimensions (PDF)
*Sold Individually (1 Door Hinge) Special order item. NOT returnable.
|
