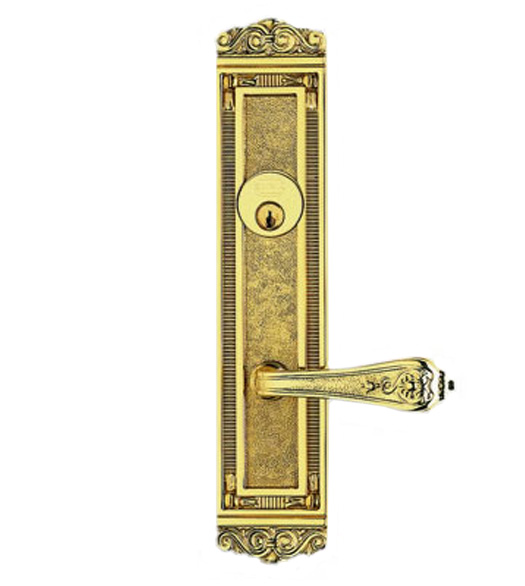

Omnia decorative designer leverset for residential and commercial entry doors (for doors that require secure locking). Built to withstand heavy use, combining precision engineering for security and durability with attractive designs. The highly detailed backplates feature a unique inside-to-outside mounting with screwless outside plates.

Each set contains door levers. backplates, latches, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.

Specifications for the Omnia D56252 Designer Entry Lockset:

• Backplate Height 11-1/4"
• Bore Hole Spacing (distance between deadbolt and lever latch): 3-5/8" Center to Center
• Doors Thickness: 1 3/4" - 2" Thick Doors (Contact us if doors are thicker)
• Backset: 2-3/8"or 2-3/4"
• Fits Standard Pre-Drilled Doors, 2-1/8" Bore Holes
• Will Fit Narrow Stiles (3-5/8" with 2-3/8" Backset Latches)
• Solid Brass Levers and Trim
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• Lock Cylinder: Standard "C" keyway supplied with two nickel silver keys.

When Selecting a Function:

• Dummy Pair: Stationary both sides of door. Fixed levers, non-functioning. Used as door pulls or to match trim.
• Single Cylinder Entry: Latchbolt operates by lever from either side. Deadbolt activated by key outside and by turnpiece inside.
• Double Cylinder Entry: Latchbolt operates by lever from either side. Deadbolt activated only by key from either side.

Select Function - Important Ordering Guide OMN-D56252-PD - Dummy Pair OMN-D56252-A - Single Cylinder Entry Add  $132.80 OMN-D56252-AC - Double Cylinder Entry Add  $132.80   Select Finish  US3 - Polished Brass SB - Shaded Bronze Add  $19.20   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide Left Handed Right Handed   Keying - Important Ordering Guide I only ordered one Keyed Different Keyed Alike Add  $5.50
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
Quantity
