| Item No: |
BAL-DUN-HFR |
| List Price: |
$106.00 |
| Your Price: |
$84.80 |

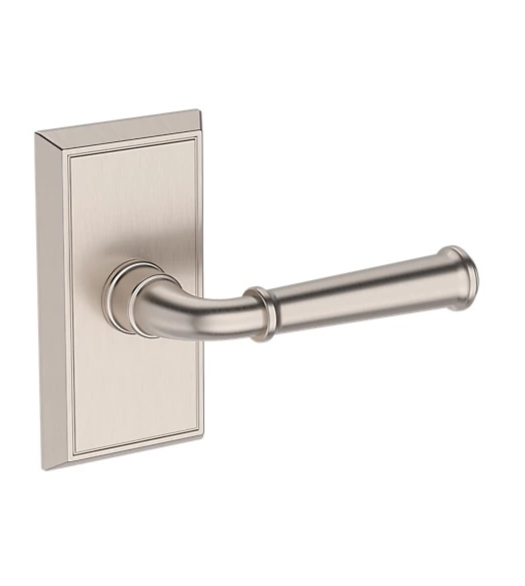

Baldwin DUN-HFR, Baldwin Reserve Collection Dunsmoor Lever with Traditional Chamfered Rose
The Dunsmoor Lever with Chamfered Rose is a very sophisticated looking leverset. The combination of the sleek classic lever paired with the more traditional design of the chamfered rose makes it a popular choice for designers everywhere. The Baldwin Reserve Dunsmoor Lever is easy to install and available in 6 color choices.
Features of the Baldwin Reserve Dunsmoor Lever:
- 2-1/8" cross bore and 1" edge bore for latch
- Latch Bolt: 1/2"
- Strike: square corner
- Keyed entry features the Baldwin 5-pin tumbler C keyway.
- Tested to exceed ANSI/BHMA Grade 2 Security.
- Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.
Specifications of the Baldwin Dunsmoor Lever with Chamfered Rosette:
- Lever Length: 4-1/4"
- Projection: 2-1/2"
- Keyed Entry Projection: 2-9/16"
- Arch Rose Width: 2-21/32"
- Chamfered Rose Length: 5"
- Door Thickness: 1-3/8" - 2" standard with optional thick door kit for 2" - 2-1/2".
- Backset: Adjustable for 2-3/4" or 2-3/8"
- Latchbolt: 1/2"
When Selecting a Function:
- Half Dummy: A surfaced mounted, non-working lever. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
- Full Dummy: Non-working levers. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
- Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two levers.
- Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.
Sold Individually. Interior roses and Half Dummy roses have exposed screws.
|
