Packaged complete with a Pair (2) Single Action Spring Door Hinges, Tension Adjusting Tool, Locking Pins and 1" wood screws. Non-template screw hole pattern. For wood or metal doors 1-1/4" - 1-3/4" thick.

The included Tension Tool is use to adjust spring tension. The Locking Pins hold the Spring in tension after it is set. These adjustable tension spring hinges allow you to determine how much closing force you apply to the door (how hard/fast the door self closes).

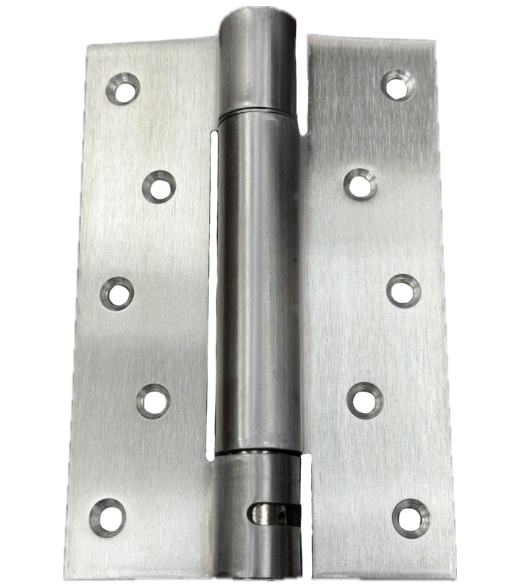

Specifications for the DWD-B4010-6 6" Spring Hinge:

• Hinge Material: 304 Stainless Steel
• Height: 6"
• Width: 4"
• Corners: Square Corners
• Gauge of Metal: .120
• Door Thickness: 1-1/4" - 1-3/4" Thick Doors
• Non-Template Hole Pattern
• Wood Screws: Qty (10) 1" Wood Screws
• Adjustable Spring Torque
• Non-Handed
• DWD B4010-6 Dimensions Diagram (PDF)

DWD-B4010-6 Hinge Selection for Maximum Door Size
DWD Hinge Number	2 Hinges		3 Hinges		Door Thickness
	Door Weight	Door Width	Door Weight	Door Width
4010-6	125 lbs	3'-0"	155 lbs	4'-0"	1-3/4"
Hinges constructed of 304 Stainless Steel

**Comparable to Discontinued Bommer 4010-6 Spring Hinge.

Sold as a pair (2 Hinges).
