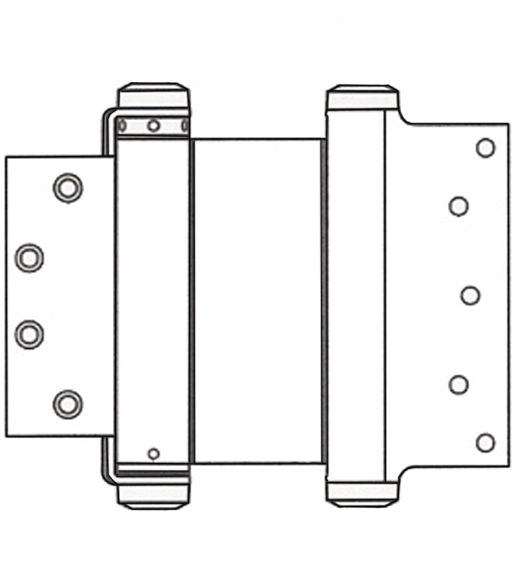

6" x 4-1/2" Double Acting Spring Hinge. Mortise Type for use on Hollow Metal Doors (4-1/2" Template Hole Pattern) - Door flange is mortised into edge of door. Jamb flange is surface applied to door jamb. For doors 1-3/4" thick. Packaged with 12-24 x 1/2" machine screws.

The PBB-DA816045 6" x 4.5" is the correct spring hinge when you are installing a 1-3/4" thick metal door that has normal hinge locations with a 4-1/2" template pattern.

Specifications of the PBB-DA816045 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 6"
• Door Leaf: 4-1/2" Template Pattern
• Jamb Leaf: 6" Non-template Pattern
• Non-Handed
• Barrel Diameter: 1.18"
• Hinge Type: Mortise
• Door Thickness: 1-3/4" Thick Doors
• Maximum Swing: 90º each direction
• PBB DA816045 Dimensions Diagram (PDF)

PBB-DA816045 Hinge Selection for Maximum Door Size
PBB Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
DA816045	75 lbs	2'-8"	107 lbs	3'-0"	1-3/4"	7'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

Sold as a pair (2 Hinges)
