| Item No: |
DWD-B15004 |
| List Price: |
$42.50 |
| Your Price: |
$24.99 |

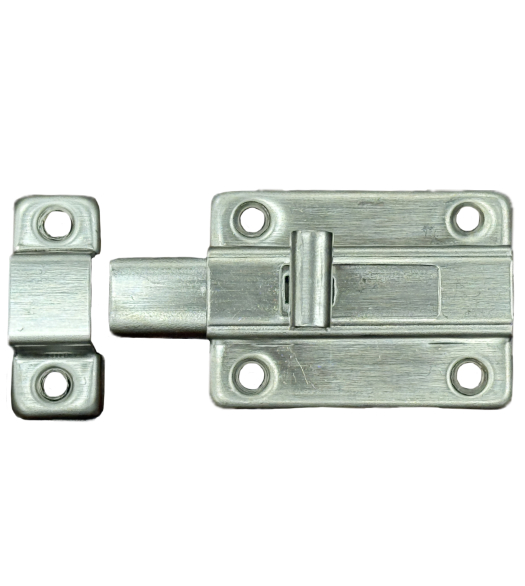

DWD B15004, Restroom Stall Stainless Steel Rim Bolt and Keeper
Rim door bolt typically used on commercial restroom stall doors. Locks a lavatory door for privacy in a toilet area. Packaged with installation screws.
Constructed of solid stainless steel, this slide type door bolt is surface mounted (screw to the doors face).
Specifications for the DWD B15004 Restroom Stall Door Bolt and Keeper:
- Material: Stainless Steel
- Base Plate Height: 1-7/16"
- Base Plate Length: 2"
- Latch Bolt Width: 1/2"
- Latch Bolt Thickness: 3/16"
- Latch Bolt Throw: 5/8"
- Keeper Width: 1/2"
- Keeper Height: 1-1/2"
- Packaged with 6 each 3/4" wood screws.
- DWD B15004 Dimensional Diagram (PDF)
**Comparable to Discontinued Bommer 15004 Rim Bolt and Keeper.
Comes packaged with rim door bolt and keeper. Set is for one (1) door.
|
