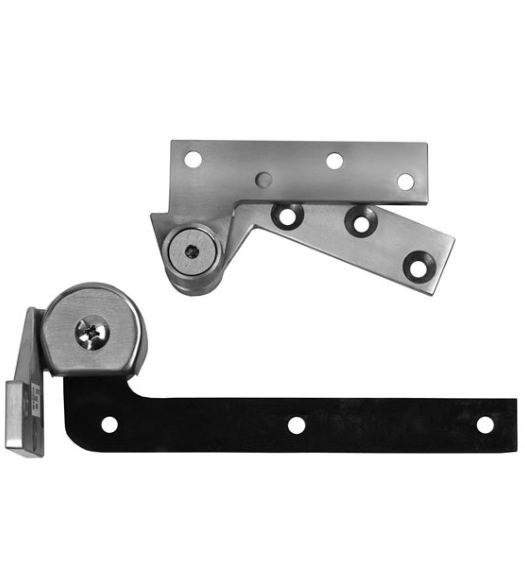

These ABH 0117.25 3/4" jamb mounted offset pivots are engineered for durability on interior doors weighing up to 250 pounds. Set includes top pivot and bottom pivot with installation hardware. ABH Door Pivots are Made in the USA to insure high quality & available in 8 different finish colors..

The bottom door pivot is mortised into the jamb and rests on the floor. Top pivot is mortised into the door's header.

Specifications: for ABH 0117 Interior Door Pivot Hinge

• Offset: 3/4"
• Door Weight: Up to 250 lbs
• Interior Door Size: Up to 4'0" x 8'0"
• US32D model UL listed for use on 3 hour fire doors
• BHMA/ANSI C07162/3530A (modified)
• Handed - Must specify left hand door or right hand door when ordering

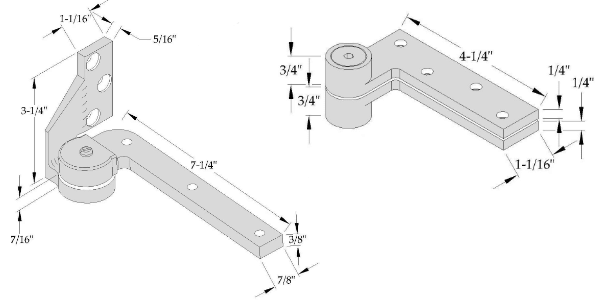

• ABH 0117.25 Dimensions (PDF)

*Important When selecting Door Hand for this pivot hinge:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".

Select Finish  US32D - 630: Satin Stainless Steel US10B - 613: Oil Rubbed Bronze Add  $67.20 US10 - 612: Satin Bronze Add  $67.20 US4 - 606: Satin Brass Add  $67.20 US3: 605 - Bright Brass Add  $82.40 US32: 629 - Bright Stainless Steel Add  $82.40 US26: 625 - Bright Chrome Add  $82.40 S1 - 689: Painted Aluminum Add  $67.20 S4: Painted Black Add  $67.20 S8: Painted White Add  $67.20
Quantity
