Heavy Door Center Hung Top Pivot Hinge, ABH 0340


Item No:  ABH-0340
List Price:  $122.00
Your Price:  $97.60

ABH 0340 Center Hung Top Pivot Hinge

This heavy duty center hung top pivot hinge is engineered for durability on heavy doors up to 500 lbs. These are used standard with ABH 0370 Door Pivot Set. ABH Door Pivots are Made in the USA to insure high quality.

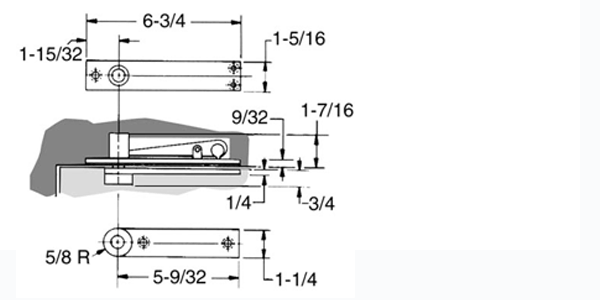

ABH 0340 Center Hung Top Pivot Hinge Size

Set includes heavy duty top pivot, dress plate for jamb portion of door and installation hardware.

Specifications: for ABH 0340 Top Door Pivot

  • Door Weight: Up to 500 lbs
  • Door Arm Length: 5-9/32"
  • Door Arm Thickness: 1/4"
  • Hinge Type: Full Mortise, Center Hung
  • Walking beam type hinge
  • Dress plate provided for jamb portion
  • Non-Handed, Reversible
  • BHMA/ANSI C06213/3520 (modified)
  • ABH 0340 Installation Template (PDF)

*Sold Individually.
**Top Door Pivot Only.


Select Finish


Quantity
  Heavy Door Center Hung Top Pivot Hinge

  Heavy Door Center Hung Top Pivot Hinge, ABH 0340
