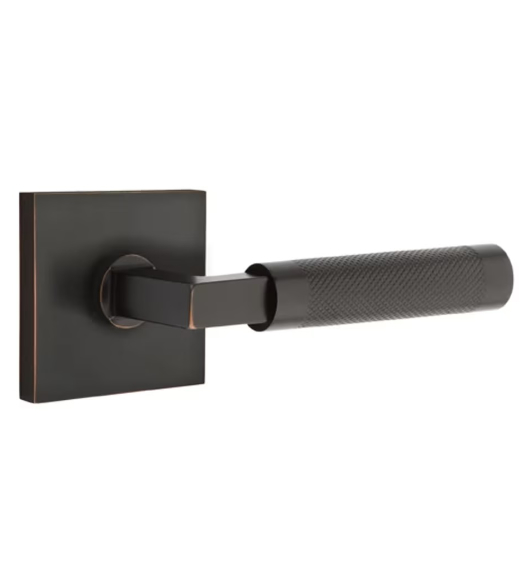

The Knurled Lever with Square Rose is customizable. Choose your favorite combination finishes. The rose and stem color can be the same finish color or something different than the knurled handle. In the picture, the rose, stem, and the knurled handle are all oil rubbed bronze. The L-Square Knurled Lever with Square Rose is available in dummy, passage, and privacy functions. Easy to install, it will fit most pre-drilled doors. This Knurled Lever with Square Rose is a stunning example of the industrial chic design aesthetic since it features a textured lever for maximum design impact.

Features of the L-Square Knurled Door Lever with Square Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Knurled T-Bar Leverset with Square Rose:

• Material: Brass
• Lever Length: 5"
• Lever Projection: 2-1/8"
• Clearance: 1-1/4"
• Rose Length: 2-1/2" square
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

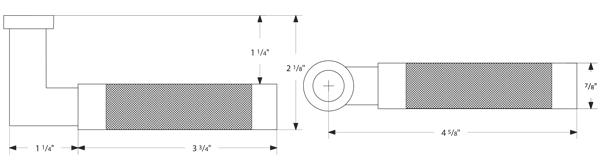

• Emtek Knurled Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5050LSKN: Double Dummy 5110LSKN: Passage (Hall or Closet) 5210LSKN: Privacy (Bedroom or Bathroom)   Select Rose and Stem Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass   Select Knurled Handle Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
