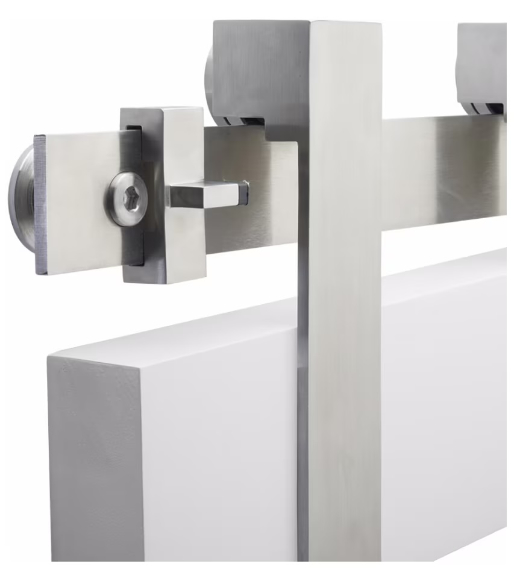

This Low Profile Concealed Wheel Barn Door System contains everything you'll need to install your sliding barn door(s). The Flat Track comes in 6 lengths to fit openings up to 8 feet wide for single or double door applications. It will accommodate door thicknesses from 1-3/8" to 2-1/4" with a maximum combined door weight of 400 pounds. The minimalist design of this barn door set combined with the stainless steel with a satin finish complements most design esthetics. Along with the anti-jump design to keep the sliding door from easily coming off the track, this Barn Door Kit also offers an optional a soft open and close system for quiet operation.

Also Available: Low Profile Concealed Wheel Black Barn Door Kit

Specifications of the Emtek Concealed Wheel Stainless Steel Barn Door Kit:

• Material: Solid Stainless Steel
• Track Length: 60" (5 feet) to 192" (16 feet)
• Track Face: 2"
• Track Thickness: 1/4" Stainless Steel
• For door openings 36" (3 feet) to 96" (8 feet)
• For wood doors up to 400 LBS.
• Door Thickness: 1-3/8" to 2-1/4"
• Finish: Satin Stainless Steel
• Emtek B1303 Specifications Diagram (PDF)
• Emtek B1303 Installation Instructions (PDF)

Barn Door Kit Contents:

• Stainless Steel Track
• (2) Hangers with Wheels
• Anti-Jump Mechanism
• Adjustable Track Stops
• Floor Guide
• Optional Soft Open/Close Kit
• Additional Hanger Kit Available for Double Door (DD) Applications
• Installation Hardware Kit Includes:
• Track Screws
• Posts with 3 Spacers
• Anti-Crush Spacers for 1/2" and 5/8" Drywall

Select Track Length  EMT-B130305SS: 60" (5') Track EMT-B130306SS: 78" (6' 6") Track Add  $102.40 EMT-B130308SS: 96" (8') Track Add  $220.80 EMT-B130310SS: 120" (10') Track Add  $576.00 EMT-B130313SS: 156" (13') Track Add  $780.80 EMT-B130316SS: 192" (16') Track Add  $1,023.20   Select Number of Doors  Single Door DD: Double Door Add  $664.80   Select Soft Open/Close Option  No Soft Open/Close Option BSC001x2: Include Soft Open/Close Option Add  $150.40
Quantity
