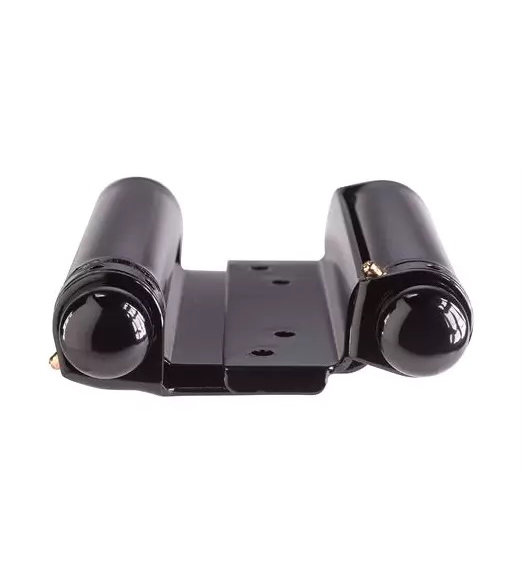

This 4" Double Acting Spring Hinge is a direct fit replacement for the Bommer 3029-4. Mortise Type - Door flange is mortised into edge of door. Jamb flange is surface applied to door jamb. For doors 7/8" to 1-1/4" thick.

Global 4" Double Acting Spring Hinges permit doors to open in either direction and automatically return to the closed position. Packaged complete with a Pair (2) Double Action Spring Door Hinges, Tension Adjusting Tool, Locking Pins plus wood mounting screws.

The included Tension Tool is use to adjust spring tension. The Locking Pins hold the Spring in tension after it is set. These adjustable tension spring hinges allow you to determine how much closing force you apply to the door (how hard/fast the door self closes).

Specifications of the Global DH-TAN5004 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 4"
• Non-Handed
• Hinge Type: Mortise
• Door Thickness: 7/8" - 1-1/4" Thick Doors
• Maximum Swing: 90º each direction
• GLO-DH-TAN5004 Dimension Diagram (PDF)

  Global DH-TAN5004 Hinge Selection for Maximum Door Size
  Global Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
  	Door Weight	Door Width	Door Weight	Door Width
  DH-TAN5004	55 lbs	2'-4"	75 lbs	3'-0"	7/8" - 1-3/8"	6'-8"
  Note: Do Not use on Doors with Hinge Edge Beveled.

  Sold as a Pair (2 Hinges).



  Select Finish  GLO-DH-TAN5004-BK: Black GLO-DH-TAN5004-GV: Galvanized
