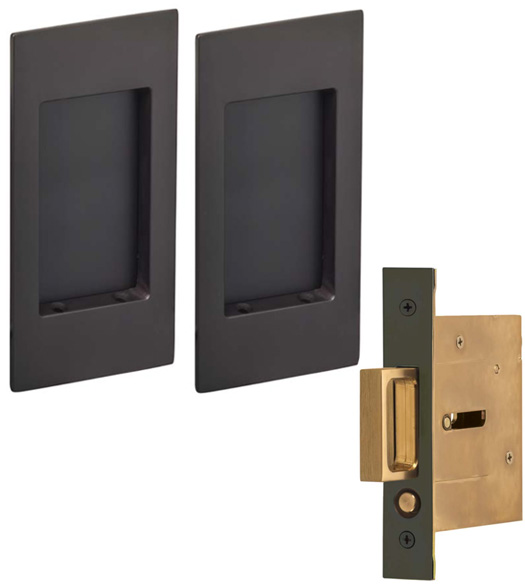

The 4-1/2 Inch Pocket Door Passage Set comes packaged with everything you'll need to install it on both sides of a single door: 2 passage flush pulls and a passage mortise box with built in finger pull to get the door from the pocket. 4-1/2 Inch Rectangular Passage Mortise Pocket Door Hardware is available in many finish colors.

Pocket Door Passage Lock: This set neither locks nor latches. It features two flush pulls and a mortise box with a built in finger edge pull to help retrieve the door from the pocket.

Also Available Matching: Dummy Set and Privacy Set

Features of the Omnia 7036 Pocket Door Hardware:

• Case: Stamped from heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Front: Armored steel front adjustable for beveled doors.
• Mortise Finger Pull: is thrown by pressing the button on the mortises faceplate. It can be retracted simply by pressing it flush with the faceplate.

Specifications of the Passage Modern Rectangular Sliding Door Trim:

• Plate Height: 4-1/2"
• Plate Width: 2-9/32"
• Plate Cut-Out Height: 2-5/8"
• Plate Cut-Out Width: 1-1/2"
• Plate Projection: 3/32"
• Overall Depth: 3/8"
• Lockbody Box Length: 3-7/8"
• Lockbody Box Depth: 3-7/16"
• Lockbody Faceplate Length: 5-1/2"
• Lockbody Faceplate Width: 1"
• Latch: 1/2" thick x 1-1/4" high x 1" throw
• Finger Pull: 1/2" thick x 2" high x 1-1/4" throw
• Non-handed
• Omnia 7036 Dimensions Diagram (PDF)

*Sold as a Set: two (2) rectangle flush pulls, a passage mortise, and all mounting hardware. For One (1) Door.
