| Item No: |
YAL-YMGR-BWK |
| List Price: |
$44.00 |
| Your Price: |
$30.99 |

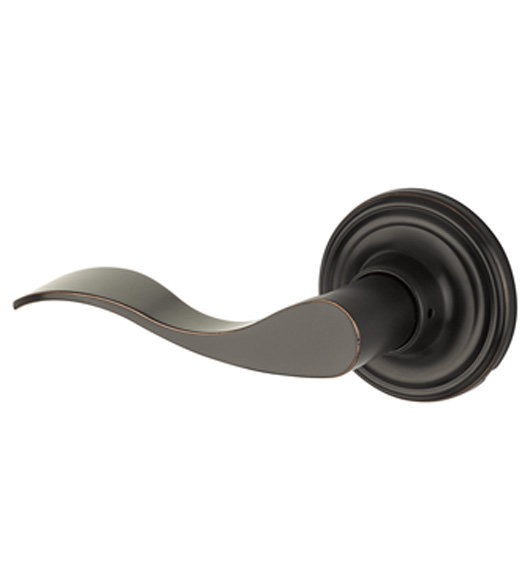

Yale YMGR-BWK, Traditional Brunswick Lever with Maguire Rose
The Brunswick Lever with Maguire Rose was specifically designed with easy installation in mind. The Maguire Rosette with Brunswick Lever comes packaged with an adjustable latch to fit 2-3/4 inch or 2-3/8 inch backsets. It is also adjustable to fit standard door thicknesses from 1-3/8 inches to 1-3/4 inches. Choose from only the most popular traditional finish colors. The Traditional Brunswick Lever with Maguire Rose is available in dummy, passage, privacy, and keyed entry functions,
Features of the Yale Expressions Brunswick Door Lever with Maguire Rose:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Solid brass lever and trim rose.
- Sold as complete set.
- Easy to install.
Specifications of the Yale Expressions Brunswick Lever with Maguire Rosette:
- Material: Brass
- Lever Length: 4-1/4"
- Lever Projection: 2-5/8"
- Clearance: 1-5/8"
- Rose Diameter: 2-1/2"
- Door Thickness: adjustable for 1-3/8" - 1-3/4"
- Backset: adjustable 2-3/8" or 2-3/4"
- Handing: non-handed
- Keyed Entry has a Schlage C keyway.
- Yale YMGR-BWK Specifications (PDF)
Available Functions:
- Double Dummy: No door latch. Door levers on both sides of the door.
Lever is surface mounted (rosette screws to the door's face). Package Includes:
2 levers, 2 roses, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch
operates from either side of door. Package Includes: 2 levers, 2 roses, door latch,
strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking.
Latch operates from either side. Turnbutton on interior lever engages privacy lock
on both levers; emergency release hole is on exterior lever. Package Includes:
2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Keyed: Guarded latchbolt operated from outside by key; inside by lever.
Turnbutton on the interior locks outside lever. Outside lever unlocks by key.
Complete set - 2 levers, 2 roses, 2 keys, door latch and strike plate.
Sold Individually
|
