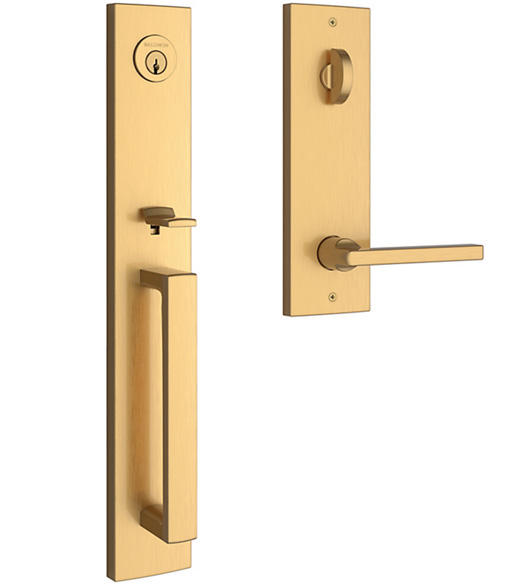

The Santa Cruz Handleset with Square Escutcheon features a very modern design, with the sharp lines that define that design aesthetic. The Santa Cruz Handleset has three contemporary interior trim levers and knobs. As part of Baldwin's Reserve Collection, the Santa Cruz Entryset has a lifetime mechanical warranty and a 25 year finish warranty. Choose from single cylinder emergency egress and dummy functions. This handleset comes with an adjustable latch that will fit 2-3/4 inch backsets and 2-3/8 inch backsets. It will fit 1-3/4 inch up to 2-1/2 inch thick doors.

Features of the Santa Cruz Handleset with Contemporary Square Escutcheon Plate:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Reserve Modern Santa Cruz Entrance Set:

• Exterior Length: 17-1/2"
• Exterior Width: 2-11/16"
• Exterior Grip Projection: 2-13/32"
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Cylinder Emergency Egress: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, the deadbolt is thrown by a thumbturn while the interior knob/lever opens the door without having to unlock the deadbolt.
• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Select Function - Important Ordering Guide EE: Single Cylinder Emergency Egress FD: Full Dummy   Select Finish  150: Satin Nickel 055: PVD Polished Nickel 260: Polished Chrome 112: Venetian Bronze 190: Satin Black 044: PVD Satin Brass   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    SQU-RH: Square Lever (right handing)   SQU-LH: Square Levers (left handing)   TUB-RH: Tube Lever (right handing)   TUB-LH: Tube Lever (left handing)   CON: Contemporary Knob   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
