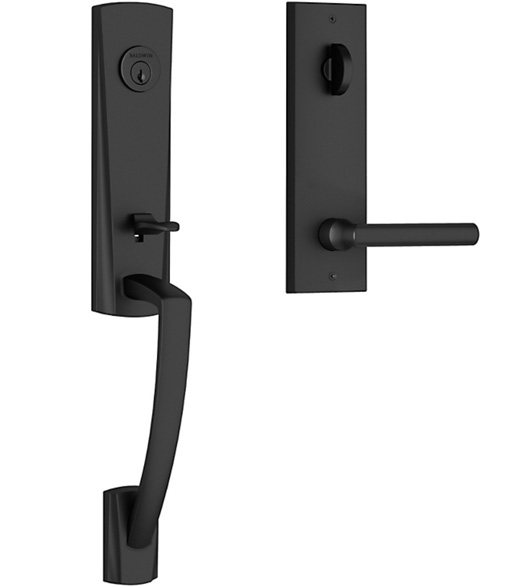

The Contemporary Miami Entrance Set has just enough of the art deco touch to make it very stylish. The stepped sides of the handleset make it a bold choice, a vintage classic brought into the modern day. The Miami Handleset is available in modern finishes--all of which have a 25 year manufacturer's warranty. It will fit 1-3/4 inch thick doors up to 2-1/2 inches thick. It comes with an adjustable latch that is good for 2-3/8 inch backsets or 2-3/4 inch backsets. Choose from emergency egress single cylinder or dummy functions.

Features of the Miami Handleset:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Reserve Collection 3/4 Escutcheon Miami Handleset:

• Exterior Overall Length: 18-1/16"
• Exterior Top Plate Width: 2-11/16"
• Exterior Top Plate Length: 9-7/8"
• Exterior Grip Projection: 3"
• Distance between Latch Bore to Bottom Mounting Hole: 8-13/32" c.c.
• Door Thickness: 1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Single Cylinder Emergency Egress: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, the deadbolt is thrown by a thumbturn while the interior knob/lever opens the door without having to unlock the deadbolt.
• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Select Function - Important Ordering Guide EE: Single Cylinder Emergency Egress FD: Full Dummy   Select Finish  150: Satin Nickel 260: Polished Chrome 112: Venetian Bronze 190: Satin Black 055: PVD Polished Nickel 044: PVD Satin Brass   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80   Select Interior Trim    TUB-RH: Tube Lever (right handing)   TUB-LH: Tube Lever (left handing)   SQU-RH: Square Lever (right handing)   SQU-LH: Square Levers (left handing)   CON: Contemporary Knob   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
