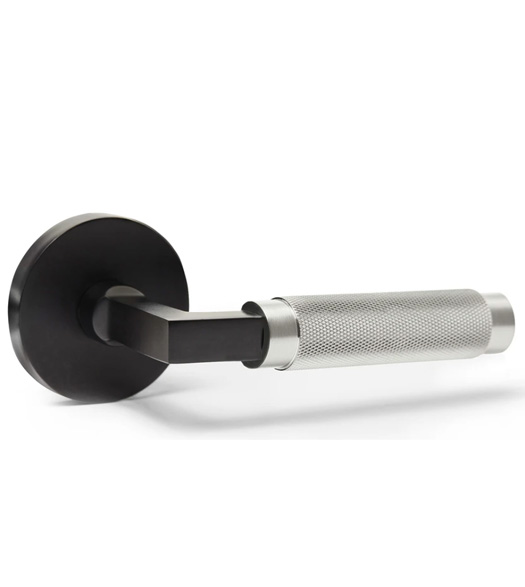

The Barcelona Two Tone Knurled Lever features a knurled lever for maximum design impact. It has a two-toned finish pairing of satin nickel and matte black for a stunning end product. The Explore Hardware Knurled Barcelona Lever was designed to fit most pre-drilled doors that are between 1-1/4 inches to 1-3/4 inches thick with either 2-3/8 inch or 2-3/4 inch backsets. Choose from dummy, passage, and privacy functions. Make your doors modern by adding both texture and a pop of color!

Features of the Matte Black and Satin Nickel Barcelona Lever:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Barcelona Knurled Leverset with Round Rose:

• Material: Brass
• Finish: Matte Black with Satin Nickel
• Lever Length: 4.96" (126mm)
• Lever Diameter: 0.87" (22.2mm)
• Lever Projection: 2.47" (62.9mm)
• Rose Diameter: 2.36" (59.9mm)
• Rose Projection: 0.39" (10mm)
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Handing: non-handed
• AHI Barcelona Dimensions Diagram (PDF)

Available Functions:

• Single Dummy: No door latch. Door lever on one side of the door. Visible surface mounting screws. Package Includes: 1 lever, 1 rose, and mounting screws.
• Double Dummy: No door latch. Door levers on both sides of the door. Visible surface mounting screws on interior and exterior. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Visible mounting screws on interior. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Privacy pin on interior rose engages privacy; emergency release hole is on exterior rose. Visible mounting screws on interior. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Sold Individually

Select Function - Important Ordering Guide SD: Single Dummy PA: Passage (hall or closet) Add  $31.45 PV: Privacy (bedroom or bathroom Add  $31.45   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
