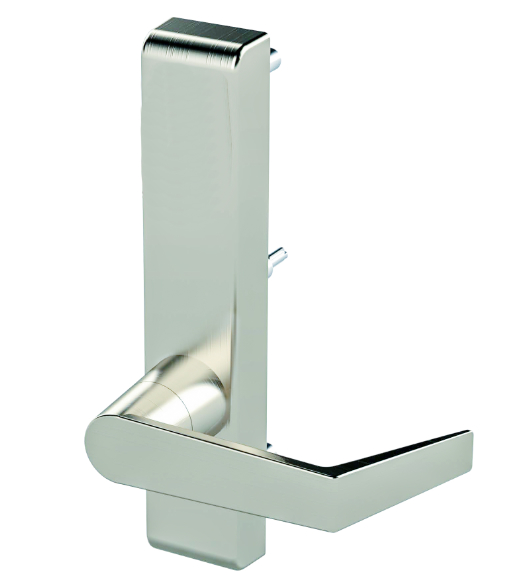

This Narrow Escutcheon Plate Passage Function Lever (Entrance by lever, always unlocked.) is suitable for all Narrow or Wide Stile Doors (aluminum framed, hollow metal, or wood). For use on door's exterior with Panic Device Hardware. Heavy duty commercial set covers standard 2-1/8" bore hole door prep.

For use with PDQ 6400 Series Rim Exit Device, 6400 Series Surface Vertical Rod Exit Device, 6300 Series Surface Vertical Rod Exit Device and 6300 Series Rim Exit Device.

Also available: Classroom Function Lever for 6300/6400 Series Panic Device and Storeroom Function Lever for 6300/6400 Series Panic Device

Packaged with mounting hardware and instructions.

Features for PDQ 6-N-14-PHL Passage Function Lever

• Passage Function (ANSI F14) - Entrance by lever, always unlocked.
• Escutcheon Plate Width: 1-13/16"
• Escutcheon Plate Height: 9"
• Total Projection: 3-1/8"
• Lever Length: 5-1/4"
• Lock Cylinder: Standard Schlage C Keyway
• Supplied with 2 keys
• Non-Handed
• ADA Compliant
• PDQ 6-N Installation Template (PDF)
• Installation Instructions (PDF)

Select Finish  630: Satin Stainless Steel 605: Polished Brass Add  $12.80 613E: Dark Bronze Add  $12.80 622: Matte Black Add  $12.80
