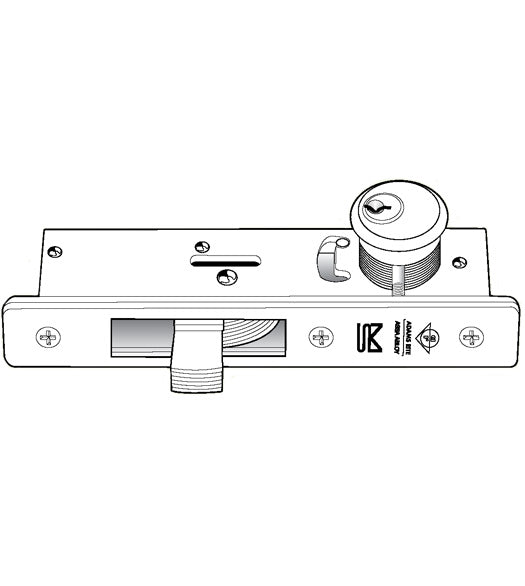

Narrow Stile Bottom Rail Deadlock, Adams Rite 1830
$147.99
$185.00Save $37.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Adams Rite 1830 is a Narrow Stile Bottom Rail Deadlock designed for storefront applications, fitting doors with ultra-narrow stiles or tempered glass and shallow bottom rails. This unit features ANSI Grade 1 lock security.
The deadlock accepts standard Mortise Thumbturns and Mortise Lock Cylinders, provided the cylinder is a 1-5/32” mortise cylinder with an MS dimensioned cam. The case is constructed of corrosion-resistant plated steel, while the bolt is six-ply laminated steel. The non-handed key is removable only when the bolt is in a positively locked or unlocked position.
Dimensions & Fit
Backset
31/32" or 1-1/8"
Other
Case Dimensions
Width - 1", Length - 6", Depth (specific to backset)
Latchbolt
15/32" x 5/8" x 2-1/8" with 5/8" throw
Questions about this product? Call 954-776-5340 or send us a message below.
