Emtek

Narrow Oval Pocket Door Keyed Entry, Emtek 2163

SKU: EMT-2163
$314.99 $393.00Save $78.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

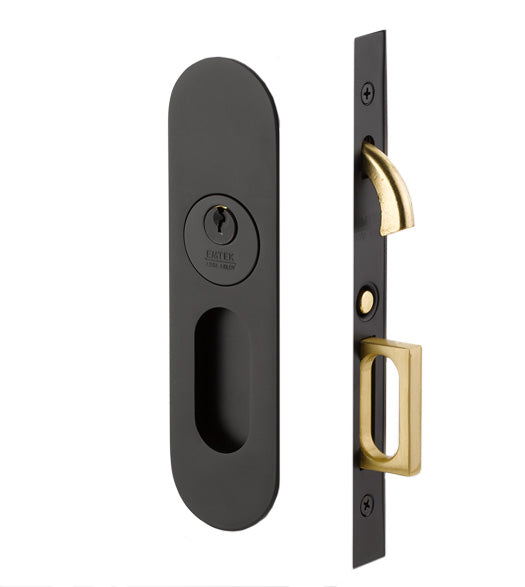

The Emtek EMT-2163 is a Narrow Oval Mortise Pocket Door Keyed Entry Set, designed for security applications on sliding pocket doors. This set includes two oval flush pulls, a keyed mortise, and all necessary mounting hardware for one door.

The unit accommodates door thicknesses ranging from 1-3/8" to 1-3/4". Operation requires a key from the exterior to unlock and a thumbturn from the interior to operate the lock.

Available finishes include Matte Black, Oil Rubbed Bronze, Satin Nickel, Polished Nickel, Polished Chrome, Satin Brass, and Unlacquered Brass. Keying options include I Only Ordered One Lock, Keyed Different, and Keyed Alike.

Also Available Matching: Dummy Set, Passage Set, and Privacy Set

Emtek 2163 Installed
Dimensions & Fit
Door Thickness 1-3/8" or 1-3/4"
Other
Face Plate Height 7-1/4"
Face Plate Width 2"
Face Plate Projection 1/8"
Mortise Box Height 6-1/4"
Mortise Box Width 3-3/8"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 7/8"
Fing Grab Dimensions 7/8"w x 2"h
Mortise Finger Pull is thrown by pressing the button on the mortise faceplate. It can be retracted simply by pressing it flush with the faceplate.

Questions about this product? Call 954-776-5340 or send us a message below.
