Emtek

Narrow Oval Passage Pocket Door Set, Emtek 2164

SKU: EMT-2164
$277.99 $347.00Save $69.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

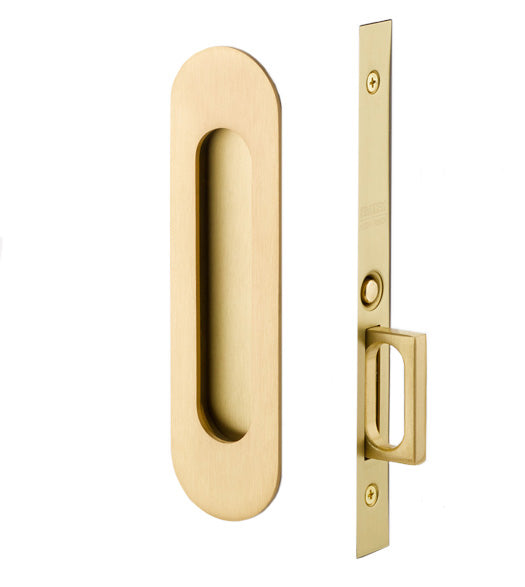

The Emtek Narrow Oval Passage Pocket Door Set provides passage function for pocket door applications. This set includes a mortise box, two flush pulls, and all necessary mounting hardware.

Designed for installation into the door, the set accommodates door thicknesses ranging from 1-3/8" to 1-3/4". The mortise box measures 6-1/4" high by 3-3/8" wide.

The finger grab is operable by pressing the button on the mortise's face plate, allowing the door to be retrieved from the pocket.

Also Available Matching: Dummy Set, Privacy Set, and Keyed Entry Function

Dimensions & Fit
Door Thickness 1-3/8" or 1-3/4"
Other
Face Plate Height 7-1/4"
Face Plate Width 2"
Face Plate Projection 1/8"
Mortise Box Height 6-1/4"
Mortise Box Width 3-3/8"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 7/8"
Finger Grab Dimensions 7/8"w x 2"h
Mortise Finger Pull is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.

Questions about this product? Call 954-776-5340 or send us a message below.
