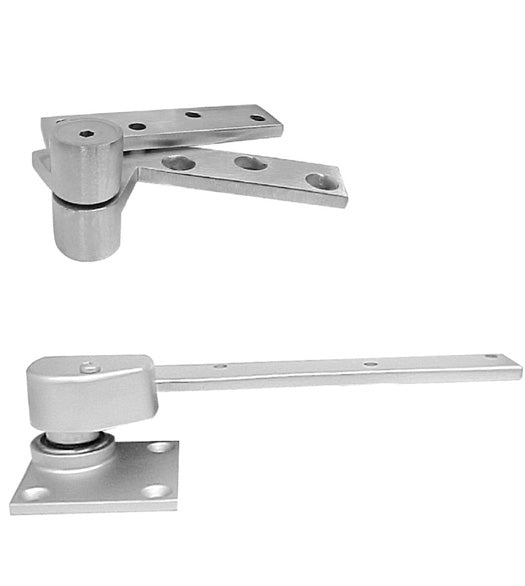

Heavy Door 3/4 Inch Offset Pivot Set, ABH 0147
The ABH 0147 Heavy Duty Door Pivot Set provides 3/4" offset pivots engineered for high durability on heavy commercial and residential doors.
The set includes the ABH 0180 top and bottom pivots and installation hardware. Pivots are rated for door weights up to 600 lbs, fitting exterior doors up to 3'6" x 7'0" and interior doors up to 4'0" x 8'6".
The US32D model is UL listed for use on 3-hour fire doors, meeting BHMA/ANSI C07162/3530A standards. Select the specific handed model required for installation.
