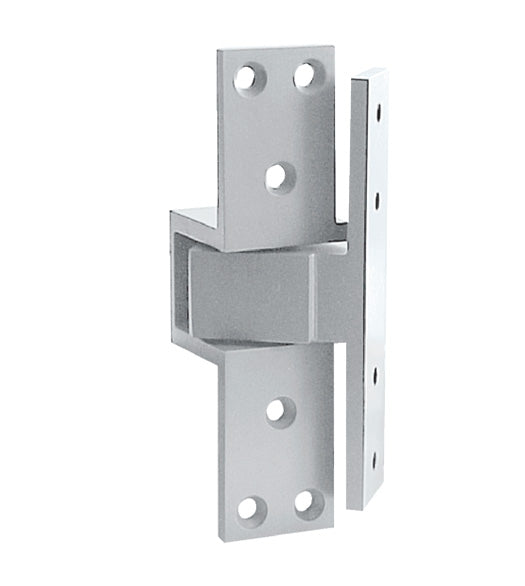

Full Mortise Pocket Pivot Hinge, ABH 0519
$332.00
$415.00Save $83.00/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The ABH 0519 Full Mortise Pocket Pivot Hinge is engineered for commercial corridor applications in hospitals, high-rise buildings, and hotels. It allows the door to swing open 90°, enabling it to lay flush with the wall.
Each pivot bears up to 90 lbs. For optimal installation, doors measuring 60" to 90" tall require a minimum of three pivots, with an additional pivot needed for every 30" increase in height.
Material & Finish
Finish
Satin Stainless Steel
Other
Maximum Door Swing
90°
Pivoting Leaf Height
5-1/2"
Pivoting Leaf Width
1-1/4"
Fixed Leaf Height
6-1/4"
Fixed Leaf Width
1-17/32"
Leaf Thickness
3/16"
Mortised Pivot Housing Width
1-23/32"
Mortised Pivot Housing Height
1-5/8"
Mortised Pivot Housing Depth
1-7/8"
Questions about this product? Call 954-776-5340 or send us a message below.
