−25%
PDQ
Class Room Security Lock with LED Status, PDQ GT135LED
$536.99
$716.00Save $179.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

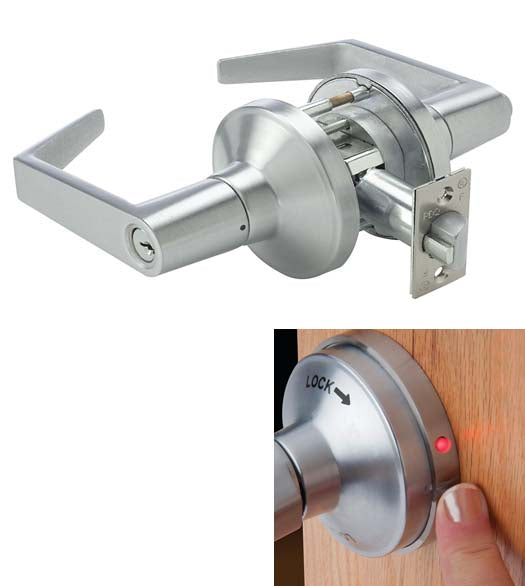

The PDQ GT135LED is a heavy-duty Grade 1 intruder cylindrical lock designed for classroom security applications. This unit allows the inside cylinder to be used to lock the outside lever, and the integrated Red LED provides immediate visual confirmation of the locked status.
The lock is constructed with a chromated cold rolled steel mechanism and billet steel spindles, accommodating door thicknesses from 1-3/4" to 2-1/4" and utilizing a 2-3/4" backset. It features Philadelphia levers and is compatible with Schlage "C" Standard keyways.
Dimensions & Fit
Door Thickness
Adjustable for 1-3/4" to 2-1/4" thick doors.
Material & Finish
Finish
Satin Chrome
Other
Door Prep
Fits standard 161 door prep.
Backsets
2-3/4"
Case
Heavy duty zinc die-cast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles.
Front
2-1/4" X 1-1/8" Beveled 1/8" on 2".
Strike
4-7/8" X 1-1/4" (Standard ASA). Stainless steel, or wrought bronze.
Rose Diameter
3-3/8"
Lever Projection
3"
Lever Length
5-1/2"
Latchbolt
9/16" throw. Adjustable front for flat or beveled doors.
Handing
Non-handed.
Trim
Philadelphia levers solid zinc diecast.
Keyways
Schlage "C" Standard.
Cylinders
Brass 6-pin cylinder keyed to 5-pins.
Warranty
25 Years manufacturer's warranty
Classroom Security (Double Cylinder)(ANSI F110)
Latchbolt operated by lever from either side. Key in either lever locks and unlocks outside lever. Inside lever always free. Red LED Outside Lever Status Indicator.
Questions about this product? Call 954-776-5340 or send us a message below.
