PDQ
Alarm Exit Device, PDQ 6200R-AL
$1,701.30
/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

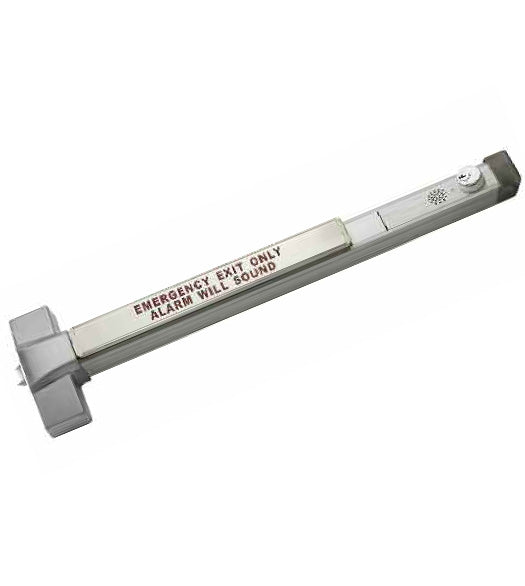

The PDQ American Eagle 6200 Series Alarm Exit Device is a heavy-duty unit designed for applications requiring a stand-alone alarm upon outward swing. This integrated alarm system provides immediate notification upon exit, making it ideal for high-security locations such as rooftops.
This non-handed device is compatible with 36" wide doors, requiring a minimum stile width of 4-1/4" and a door thickness of 1-3/4". The stainless steel touch pad is labeled "EMERGENCY EXIT ONLY - ALARM WILL SOUND."
The unit is listed by U.L./U.L.C. and complies with ANSI/BHMA Grade 1 standards, providing certified reliability for commercial emergency hardware.
Dimensions & Fit
Door Thickness
1-3/4"
Material & Finish
Finish
Satin Stainless Steel
Other
Chassis
Cadmium plated steel
Rail
Extruded aluminum
Touch Pad
Stainless steel, 18" wide
Latch Bolt
Stainless steel dead locking with 3/4" throw
Projection
3-1/8” projection / 1-5/8” projection when dogged
Hand
Device is non-handed
Dogging
None
Application
Rim (8'0" tall door standard) / Covers 161 door prep
Stile Width
4-1/4" minimum
Door Width
Standard for 3'0" door (36" wide door)
Certifications
U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0”
Warranty
Ten (10) year limited warranty mechanical components
Questions about this product? Call 954-776-5340 or send us a message below.
