Weslock

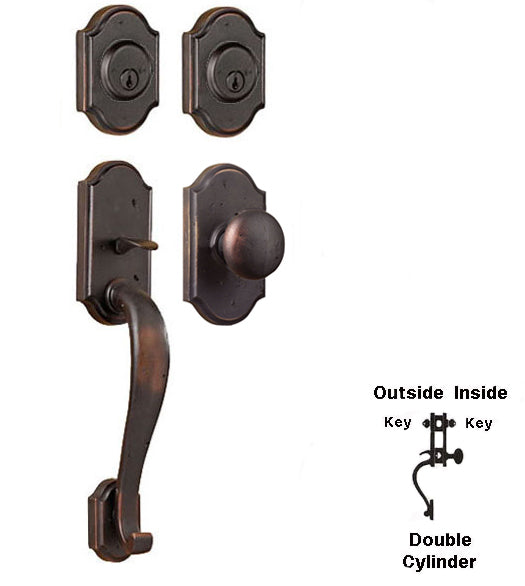

Castletown Double Cylinder Entry Handleset, Weslock 7625/7402

SKU: WES-7625/7402
$329.60 $412.00Save $82.40/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Select Inside Trim
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Weslock Castletown Double Cylinder Entry Handleset is a robust, solid bronze solution featuring classic design lines. This entryset is rated ANSI Grade 2 and provides a high-quality enhancement for any door application.

The handleset is designed for versatility, accommodating door thicknesses from 1-3/4" to 2" and adjustable backsets of 2-3/8" or 2-3/4". The double cylinder operation allows key access from both exterior and interior.

Available in Oil Rubbed Bronze or Matte Black finishes.

Also available matching:
Castletown Single Cylinder Handleset
Castletown Dummy Handleset

Dimensions & Fit
Door Thickness adjustable for 1-3/4" to 2"
Backset adjustable for 2-3/8" or 2-3/4" with removable faceplates.
Other
Overall Exterior Length 18-1/2"
Deadbolt Length (exterior and interior) 4"
Deadbolt Width (exterior and interior) 2-3/4"
Deadbolt Projection (exterior and interior) 3/4"
Exterior Handle Length 13-1/4"
Exterior Handle Projection 2-1/2"
Exterior Top Handle Plate Length 5"
Exterior Top Handle Plate Width 2-3/4"
Exterior Bottom Handle Plate Width 2-3/4"
Interior Plate Length 5"
Interior Plate Width 2-3/4"

Questions about this product? Call 954-776-5340 or send us a message below.
