Kwikset

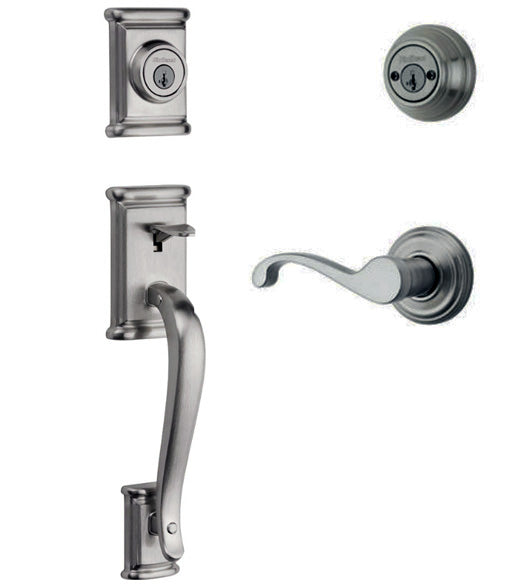

Ashfield Double Cylinder Handleset, Kwikset 801ADH
$268.17
$383.10Save $114.93/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Kwikset 801ADH Ashfield Double Cylinder Handleset provides a robust entry solution, featuring edged rectangular mounts and solid brass construction backed by a lifetime mechanical warranty.
This handleset is designed for 1-3/4" thick doors, compatible with 2-3/8" or 2-3/4" backsets. The deadbolt requires a key on both inside and outside, while the latchbolt is operated by a turnknob inside and a thumbpiece outside.
Also Available Matching: Ashfield Single Cylinder Handleset and Ashfield Dummy Handleset
Dimensions & Fit
Door Thickness
1-3/4"
Other
Exterior Length Overall
17-3/4"
Exterior Grip Projection
2-21/32"
Exterior Grip Length
14-11/25"
Deadbolt to Latch Spacing
5-1/2" center to center
Center of Latch to Center of Throughbolt
8-13/32"
Cross Bore
2-1/8"
Handing
please specify
Questions about this product? Call 954-776-5340 or send us a message below.
