Dexter-Schlage
Alarm Rim Device, DETEX V40EBCD62836
$702.40
$878.00Save $175.60/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

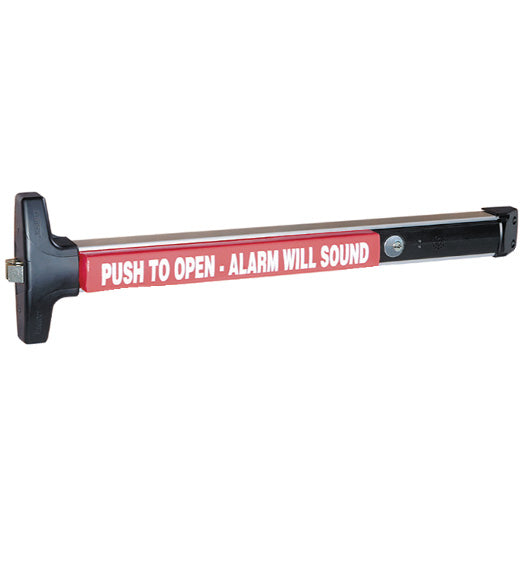

The DETEX V40EB62836 is a 36" Alarm Rim Device designed for outward swing doors requiring a stand-alone alarm. This panic exit device features an integrated alarm in the push rail, alerting management immediately upon unauthorized exit.
This exit device is suitable for wood, fiberglass, and hollow metal doors. It is compliant with U.L. 10C, UBC 7.2 (1997), and ANSI/BHMA Grade 1, A156.3 2001 Exit Devices.
Dimensions & Fit
Door Thickness
1-3/4" - 2-1/4"
Other
Rail
Heavy duty ribbed extruded aluminum
Touch Pad
18-1/8" wide
Latch Bolt
Stainless steel dead locking with 3/4" throw
Projection
3-1/4” projection / 2-1/2” projection when depressed
Hand
Device is non-handed
Stile Width
4-1/4" minimum
Door Width
Standard for 3'0" door (36" wide door)
Certifications
U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 10’0” maximum single and pairs / Complies with U.L. 10C and UBC 7.2 (1997). ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices.
Manufacturer's Warranty
Ten (10) year limited warranty mechanical components / Three (3) year limited electrical components
