Rockwood

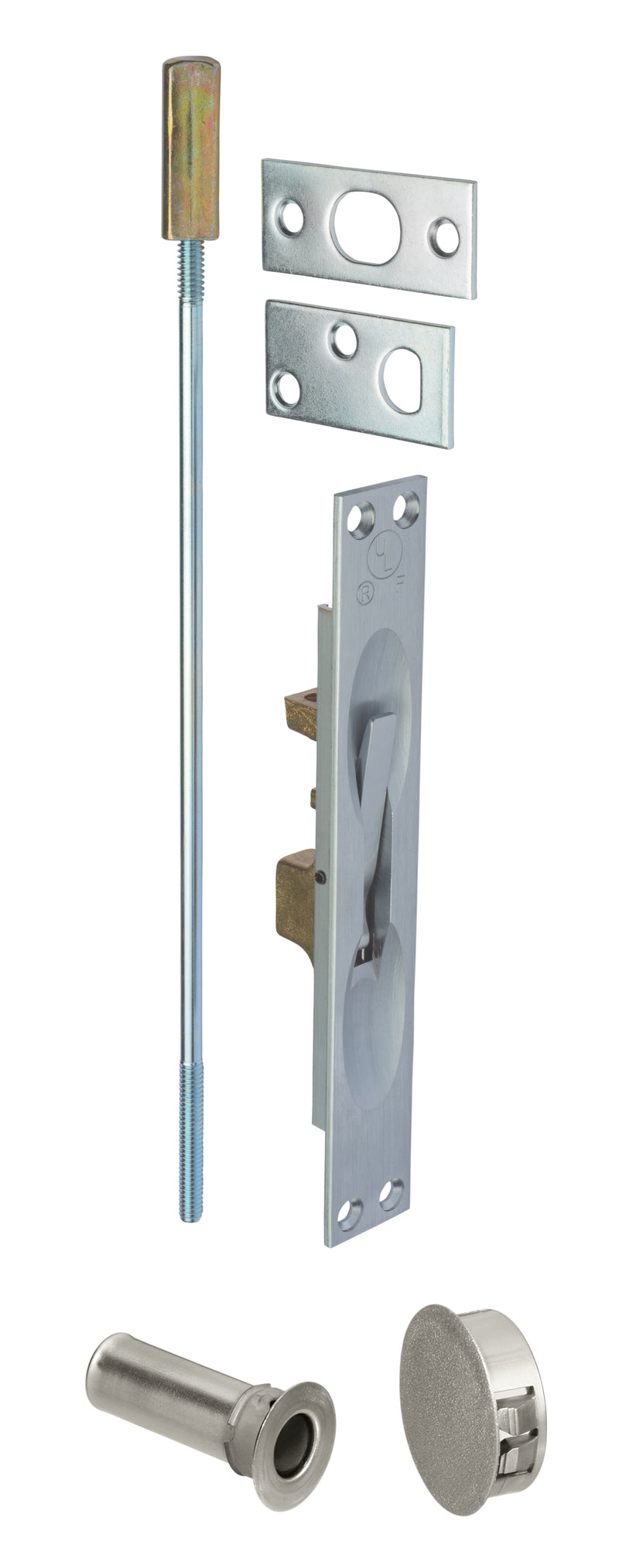

Lever Extension Flush Bolt with Bottom Fire Bolt, Rockwood 555 X 18BFB

SKU: RKW-555-X-18BFB
$204.30 $227.00Save $22.70/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Select Finish
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Rockwood 555 X 18BFB Lever Extension Flush Bolt with Bottom Fire Bolt is designed for select fire rated hollow metal swinging doors. This unit fits ANSI A115 door and frame preparation and includes a bottom fire bolt, eliminating the need for floor preparation.

When subjected to 230˚F, the integrated plug and black plastic cover melt, allowing the bolt to project and lock the leaves together. The system features an oversized fire bolt strike hole to accommodate slight door misalignment and includes a 1-1/2" adjustable bolt head for installation flexibility.

Other
Base Material Brass
Weight 0.9lbs.
Bolt Throw 3/4"
Bottom Bolt Diameter 13/16"
Faceplate Length 6 3/4"
Faceplate Width 1"
Fastener 8 ea. #8 x 3/4" FH combo screws
Guide Length 2"
Guide Width 1"
Strike Height 2 1/4"
Strike Width 15/16"
Top Bolt Length 6 3/4"
Top Bolt Width 1"

Questions about this product? Call 954-776-5340 or send us a message below.
