Emtek

Narrow Rectangular Passage Pocket Door Set, Emtek 2154

SKU: EMT-2154
$292.00 $365.00Save $73.00/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

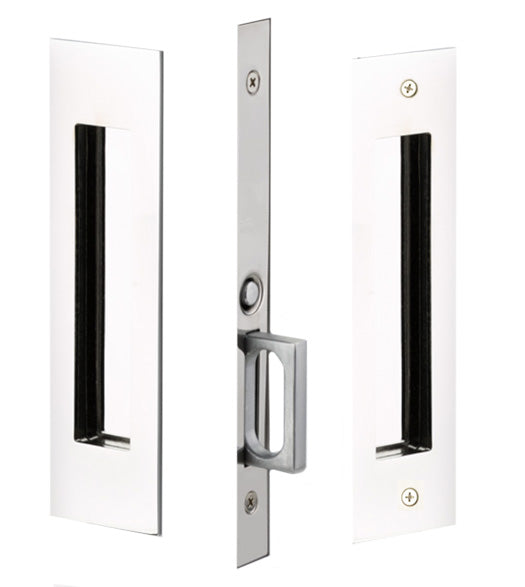

The Emtek 2154 is a Narrow Rectangular Passage Pocket Door Set. This mortise hardware is designed for pocket door applications and includes a mortise box and two flush pulls.

This set is engineered to fit doors up to 1-3/8 inches thick. The mortise box measures 6-1/4 inches high by 3-3/8 inches wide, and the trim plates are 1/8 inches thick.

The passage function allows the door to swing freely without requiring a lock or latch. The mortise finger pull is activated by pressing the button on the face plate, allowing for easy retrieval from the pocket.

Also Available Matching: Dummy Set, Privacy Set, and Keyed Entry Function

Dimensions & Fit
Door Thickness 1-3/8"
Other
Face Plate Height 7-1/4"
Face Plate Width 2"
Face Plate Projection 1/8"
Mortise Box Height 6-1/4"
Mortise Box Width 3-3/8"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 7/8"
Finger Grab Dimensions 7/8"w x 2"h
Mortise Finger Pull is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.
