Inox

Rectangular ADA Compliant Sliding Door Privacy Set, INOX PHIX45714PD8340-ADA

SKU: INX-PHIX45714PD8340-ADA
$413.99 $517.00Save $103.01/ unit
Out of Stock ā€” Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

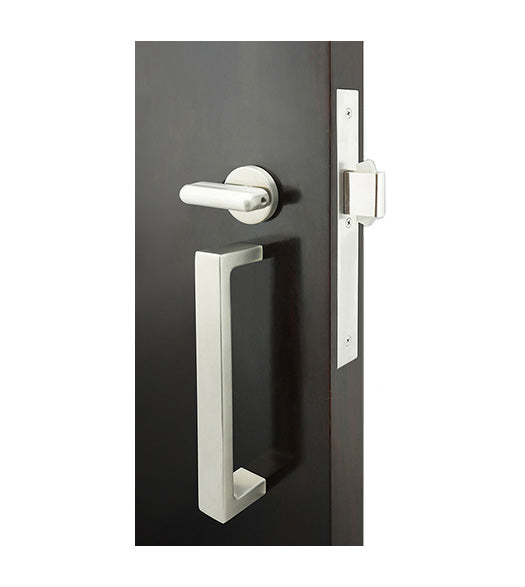

The Inox INX-PHIX45714PD8340-ADA is a Rectangular ADA Compliant Sliding Door Privacy Set designed for pocket doors. This privacy lock meets the ADA no grasp, no pinch standard and is available in satin or polished stainless steel finishes.

Constructed from stainless steel, the unit allows the latch to be thrown and retracted from the interior via an ADA compliant thumbturn. The exterior features an emergency coin release to operate the latch.

ADA Compliant Handicap Logo
Dimensions & Fit
Door Thickness 1-3/4"
Interior Dimensions
Thumbturn Length 2-3/4"
Thumbturn Width 5/8"
Material & Finish
Material Stainless Steel
Other
Total Pull Length 7-3/4"
Center to Center Length 7-1/4"
Pull Projection 1-3/4"
Pull Width 1"
Cylinder Rose Diameter 1-13/16"
Mortise Box Height 5-29/32"
Mortise Box Width 11/16"
Mortise Box Depth 3-41/64"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 1"
Door Backset 2-3/4"
Minimum Pocket Door Opening 40"
Surface Mounting Pull screws to the face of the door.

Questions about this product? Call 954-776-5340 or send us a message below.
