Continuous Hinge 83 Inch Full Surface, Mont Hard THY-1183HD

SKU: GLO-THY-1183HD
$240.59 $320.78Save $80.19/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

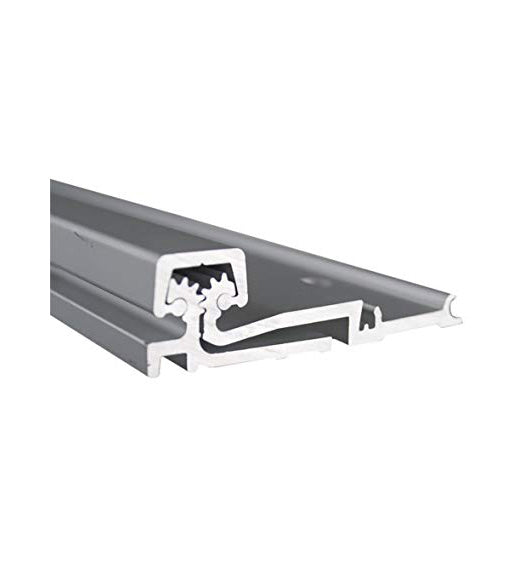

The Global Mont Hard THY-1183HD is an 83" Full Surface Continuous Geared Hinge. This unit is utilized in door retrofit, renovations, and new construction where door mortising is not practical.

A Continuous Geared Hinge consists of two full-height, paired, and geared leafs. Each leaf rotates evenly from top to bottom, riding on superior Delrin Teflon bearings, ensuring the retention of clean lines while supporting heavy vertical loads.

Also available: 83" Full Surface Continuous Geared Hinge for Narrow Door Frames

GLO-1183HD specifications
Other
Hinge Length 83"
Hinge Material 6063 T6 Aluminum
Number of Bearings 16
Door to Frame Clearance 1/16"
Recessed Door Offset 1/32"
Maximum Door Height 6'-10" (83")
Hinge Type Full Surface Continuous Gear Hinge
