PDQ

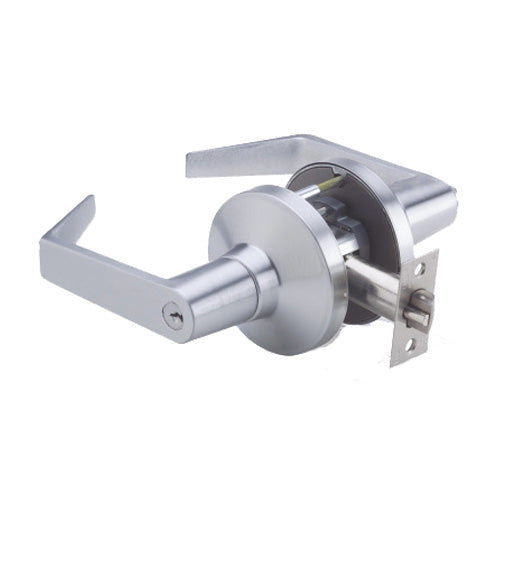

Commercial Door Philadelphia Levers, Heavy Duty Grade 2, PDQ GP Series

SKU: PDQ-GP-PHL
$62.99 $83.00Save $20.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The PDQ GP Series Philadelphia Levers are heavy-duty, Grade 2 commercial door hardware compliant with ANSI/BHMA A156.2-1996 and Series 4000.

These ADA compliant levers feature a solid zinc diecast trim and a heavy gauge cold-rolled steel mechanism. They are adjustable for door thicknesses ranging from 1-3/8" to 1-3/4".

The unit is available in various functions and finishes, including Brushed Chrome, Satin Brass, and Oil Rubbed Bronze.

ADA Compliant Handicap

Available Functions: for PDQ GP Series Heavy Duty Commercial Levers

  • Single Dummy: For use as a pull or to match trim, one (1) side.
  • Double Dummy: For use as a pull or to match trim, both (2) sides.
  • Communicating: Latch bolt operated by inside lever. Blank plate outside.
  • Passage (Hall or Closet)(ANSI F75): Latchbolt operated by lever from either side at all times. For doors that don't need locking.
  • Privacy (Bedroom or Bathroom)(ANSI F76): Latchbolt operated by lever from either side or emergency release in outside lever. Outside locked by push button on inside lever. Outside lever unlocked by emergency release in outside lever, rotating inside lever or closing door.
  • Keyed Entry (ANSI F109): Outside lever locked by push/turn button inside. When outside lever is locked by push button inside - key from outside or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning the button inside - key from outside or rotating inside lever retracts the latch but does not unlock outside lever.
  • Classroom (ANSI F84): Outside lever locked and unlocked by key. Inside lever always unlocked.
  • Storeroom (ANSI F86): Outside lever fixed. Entry by key only. Inside lever always free (unlocked).
  • Exit Twin Communicating: Inside lever locked or unlocked with key. Latch bolt operated by inside lever. Blank plate outside. Requires minimum clearance of 1-1/2" between doors.
  • Office Entry (ANSI F82): Outside lever locked and unlocked by key. Push button locking inside. Turning inside lever unlocks outside.
Dimensions & Fit
Door Thickness Adjustable for 1-3/8" to 1-3/4" thick.
Other
Door Prep Fits standard 161 door prep.
Backsets 2-3/4", 2-3/8", 5".
Case Heavy gauge cold-rolled steel mechanism. Chromate plate.
Front 2-1/4" X 1-1/8" Beveled 1/8" on 2".
Strike 4-7/8" X 1-1/4" (Standard ASA). Stainless steel, or wrought bronze.
Rose Diameter 3-5/16"
Lever Projection 3"
Lever Length 5-1/2"
Latchbolt 1/2" throw. Adjustable front for flat or beveled doors.
Handing Non-handed.
Trim Philadelphia levers solid zinc diecast.
Keyways Schlage "C" Standard.
Cylinder Brass 6-pin cylinder keyed to 5-pins.

Questions about this product? Call 954-776-5340 or send us a message below.
