| Item No: |
BOM-3029-5x3.5 |
| List Price: |
$164.08 |
| Your Price: |
$164.08 |

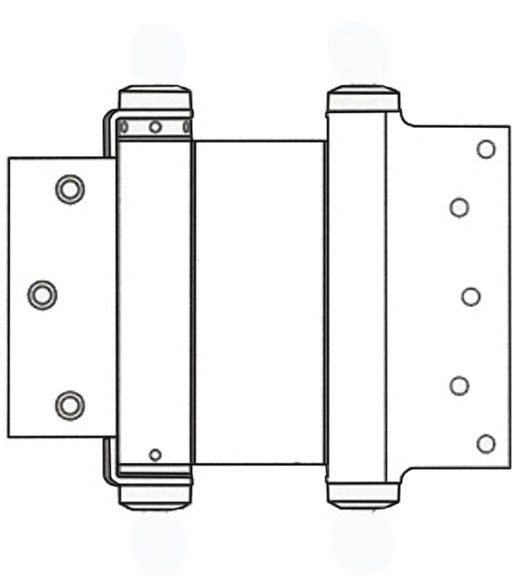

Bommer 3029-5x3.5, 5" x 3-1/2" Double Acting Spring Hinge
5" x 3-1/2" Double Acting Spring Hinge. Mortise Type for use on Hollow Metal Doors (3-1/2" Template Hole Pattern) - Door flange is mortised into edge of door. Jamb flange is surface applied to door jamb. For doors 1-3/8" thick. Packaged with 10-24 x 1/2" machine screws.
Specifications of the Bommer 3029-5x3.5 Double Acting Spring Hinge:
- Material: Steel
- Hinge Size: 5"
- Template Door Leaf (3-1/2" Template Pattern)
- Non-Handed
- Hinge Type: Mortise
- Door Thickness: 1-3/8" Thick Doors
- Maximum Swing: 90ยบ each direction
- Bommer 3029-5x3.5 Dimension Diagram (PDF)
|
Bommer 3029-5x3.5 Hinge Selection for Maximum Door Size |
| Bommer Hinge Number |
2 Hinges |
3 Hinges |
Door Thickness |
Min. Door Height |
| Door Weight |
Door Width |
Door Weight |
Door Width |
| 3023-5x3.5 |
65 lbs |
2'-8" |
93 lbs |
3'-0" |
1-3/8" |
6'-8" |
| Note: Do Not use on Doors with Hinge Edge Beveled.
|
Sold as a Pair (2 Hinges).
** This item is Discontinued.
|
