| Item No: |
BOM-CL3024-5 |
| List Price: |
$358.96 |
| Your Price: |
$215.38 |

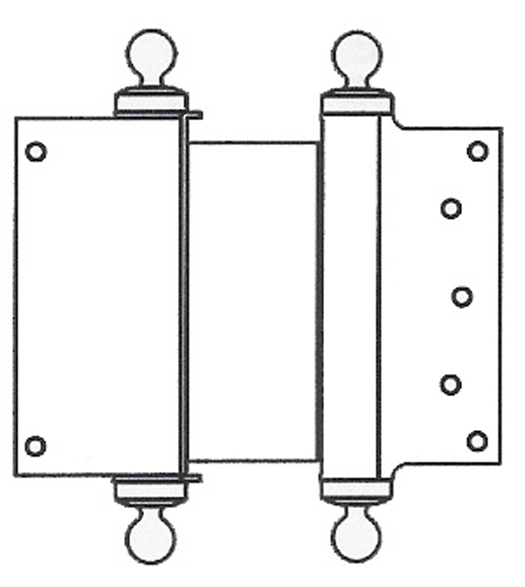

Bommer CL3024-5, 5 Inch Box Clamp Type Double Acting Spring Hinge
5" Double Acting Spring Hinge with classic ball tips. Box clamp type door flange is attached to door with thru-bolts and nuts. Jamb flange is surface applied to door jamb. Available for doors 1-1/8" and 1-1/4" thick. Packaged with all mounting hardware.
Also available without Ball Tips: Bommer 3024-5 5" Double Acting Spring Hinge
Specifications of the Bommer CL3024-5 Double Acting Spring Hinge:
- Material: Steel
- Hinge Size: 5"
- Non-Template
- Non-Handed
- Classic Ball Tips
- Door Thickness: Optional 1-1/8" and 1-1/4" Thick Doors
- Maximum Swing: 90ยบ each direction
- Bommer CL3024-5 Dimension Diagram (PDF)
|
Bommer CL3024-5 Hinge Selection for Maximum Door Size |
| Bommer Hinge Number |
2 Hinges |
3 Hinges |
Door Thickness |
Min. Door Height |
| Door Weight |
Door Width |
Door Weight |
Door Width |
| CL3024-5 |
65 lbs |
2'-8" |
93 lbs |
3'-0" |
1-1/8", 1-1/4" |
6'-8" |
| Note: Doorbox clamps are not adjustable.
Select the thickness of your door. |
Bommer CL3024-5 available for 2 different Door Thickness
Bommer CL3024-5-1.125: 1-1/8" Thick Door
Bommer CL3024-5-1.250: 1-1/4" Thick Door
Sold as a Pair (2 Hinges).
** These hinges are normally special order 3-5 weeks to ship. Select the thickness of your door below.
|
