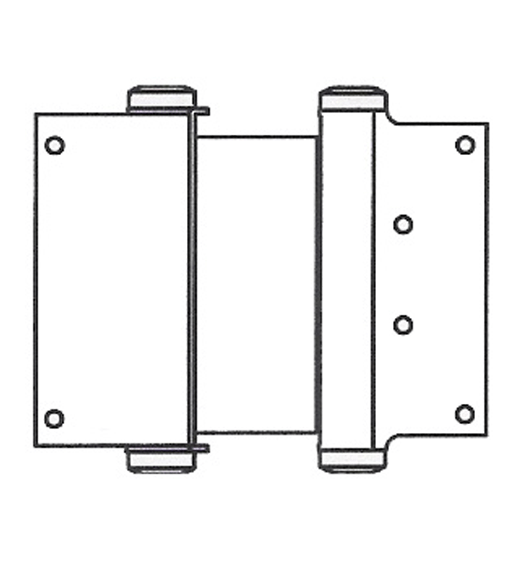

4" Double Acting Spring Hinge. Box clamp type door flange is attached to door with thru-bolts and nuts. Jamb flange is surface applied to door jamb. Available for doors 7/8", 1" and 1-1/8" thick. Packaged with all mounting hardware.

Specifications of the Bommer 3024-4 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 4"
• Non-Template
• Non-Handed
• Door Thickness: Optional 7/8", 1" and 1-1/8" Thick Doors
• Maximum Swing: 90º each direction
• Bommer 3024-4 Dimension Diagram (PDF)

Bommer 3024-4 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3024-4	60 lbs	2'-4"	75 lbs	3'-0"	7/8", 1", 1-1/8"	6'-8"
Note: Doorbox clamps are not adjustable. ** These hinges are Discontinued

Bommer 3024-4 available for 3 different Door Thickness

Sold as a Pair (2 Hinges).

** This item is Discontinued

Select Door Thickness  3024-4-0.875: 7/8" Thick Door 3024-4-1.0: 1" Thick Door 3024-4-1.125: 1-1/8" Thick Door   Select Finish  600: Primed For Painting 601: Bright Black 603: Zinc Plated Add  $28.64 652: Satin Chrome Add  $78.72
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
