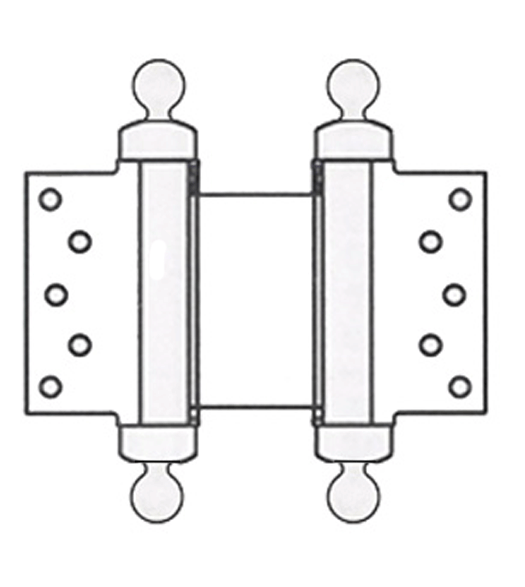

Bommer CL3023-7, 7 Inch Half Surface Double Acting Spring Hinge with Ball Tips
7" Double Acting Spring Hinge with Classic Ball Tips. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 1-3/8" to 2" thick. Packaged with all wood screws.
Also available without Ball Tips: Bommer 3023-7 7" Double Acting Spring Hinge
Specifications of the Bommer CL3023-7 Double Acting Spring Hinge:
- Material: Steel
- Hinge Size: 7"
- Non-Template
- Non-Handed
- Classic Ball Tips
- Hinge Mounting Type: Half Surface
- Door Thickness: 1-3/8" to 2" Thick Doors
- Maximum Swing: 90ยบ each direction
- Bommer CL3023-7 Dimension Diagram (PDF)
|
Bommer CL3023-7 Hinge Selection for Maximum Door Size |
| Bommer Hinge Number |
2 Hinges |
3 Hinges |
Door Thickness |
Min. Door Height |
| Door Weight |
Door Width |
Door Weight |
Door Width |
| CL3023-7 |
82 lbs |
3'-0" |
120 lbs |
3'-6" |
1-3/8" - 2" |
7'-0" |
| Note: Do Not use on Doors with Hinge Edge Beveled.
|
* These hinges are normally special order 3-5 weeks to ship.
Sold as a Pair (2 Hinges).
|
