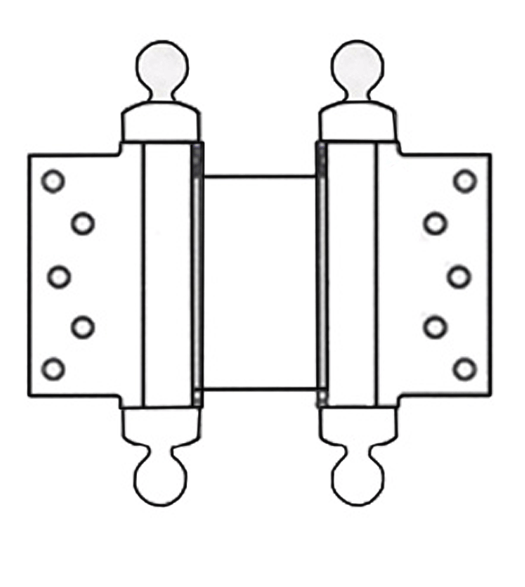

6" Double Acting Spring Hinge with Classic Ball Tips. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 1-1/4" to 1-3/4" thick. Packaged with all wood screws.

Also available without Ball Tips: Bommer 3023-6 6" Double Acting Spring Hinge

Specifications of the Bommer CL3023-6 Double Acting Spring Hinge:

• Material: Steel
• Hinge Size: 6"
• Non-Template
• Non-Handed
• Classic Ball Tips
• Hinge Mounting Type: Half Surface
• Door Thickness: 1-1/4" to 1-3/4" Thick Doors
• Maximum Swing: 90º each direction
• Bommer CL3023-6 Dimension Diagram (PDF)

Bommer CL3023-6 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
CL3023-6	75 lbs	2'-8"	107 lbs	3'-0"	1-1/4" - 1-3/4"	7'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

* These hinges are normally special order 3-5 weeks to ship.

Sold as a Pair (2 Hinges).

Select Finish  600: Primed For Painting 633: Satin Brass Add  $32.64 652: Satin Chrome Add  $78.88
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
