| Item No: |
GLO-TH1100-RP124D-2ZCP |
| List Price: |
$9.20 |
| Your Price: |
$6.13 |
Global TH1100-RP124D-2ZCP, 4-1/2 Inch Hinge Reinforcement Plate
951 U model mounting plate for 4-1/2" high hinge. For use with metal doors or metal door frame. Standard 4-1/2 inch hinge template screw pattern.
Also available: Other Hinge Mounting Plates
Use when existing mounting is missing, damaged or new 4-1/2" butt hinge installation. Plate is attached with (4) #12-24 screws to the inside of metal door or frame. Hinge mounting holes are tapped for #12-24 hinge screws.

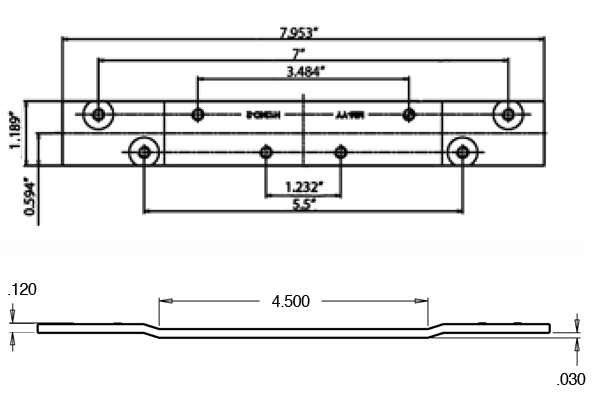

Specifications for the TH1100-RP124D-2ZCP 4-1/2" Hinge Mounting Plate:
- Plate Height: 7.953"
- Plate Width: 1.189"
- Plate Offset: .030" (for standard weight .134" thick hinge)
- Plate Thickness: .120"
- Material: Steel, Zinc plated
- Mounting: (4) holes tapped 12-24
*Sold Individually.
|
