| Item No: |
DL2700 |
| List Price: |
$725.00 |
| Your Price: |
$580.00 |

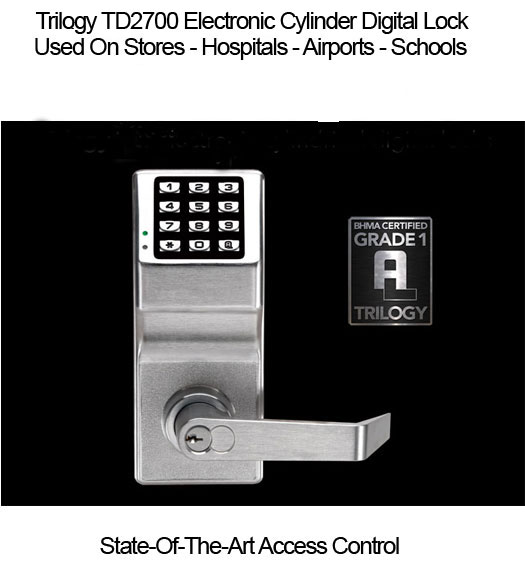

Door Alarm Lock Electronic Digital Lock DL2700
Discover why more schools more retail stores, more airports and more businesses rely on Trilogy Keyless Locking Systems
Some users: Walgreens, Blockbuster Video, KFC, Williams Sonoma
DL2700 our most popular keypad door lock now with more codes and power
OPERATION: Clutch mechanism permits turning
lever without retracting latch and reduces stress
on lock bodies and spindle. Outside lever free
turning in locked position. Entering access code,
key bypass, or remote bypass will allow lever to
retract latch. Inside lever always instant egress
DOOR THICKNESS: 1 5/8" to 1 7/8." Other
thicknesses. Please consult Alarm Lock
BACKSET: 2 3/4" Standard. 2 3/8" backset also
available.
KEYPAD: All metal, 12 button programmable for
multi-level access functions including group or
individual user codes, master and management
codes, passage and emergency or service
code, lockout and remote override capability
and allowable entry time from 5 to 20 seconds.
4 Different keypad tones and keypad may be
silenced
STANDARD KEY OVERRIDE CYLINDERS:
Solid brass 6 pin tumbler cylinder pinned 5,
SC1 keyway, furnished in all locks
INTERCHANGEABLE CORE MODELS: Accepts
6 & 7 Pin Cylinders
LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2"
throw, solid brass, deadlocking. Reversible.
Adjustable front for flat or beveled doors
STRIKE: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4
7/8" ASA strike included. With screws for wood
or metal jambs
LATCH FRONT: 1 1/8" x 2 1/4" wrought brass or
stainless steel
HANDING: Non-handed
POWER: 5 AA alkaline batteries are now rated at
120,000 cycles, supplied. Audible low battery alert,
visual and audible entry indicators, unique Flex
Drive® motor
DOOR PREP: Standard ANSI A115 Series Prep,
modified by adding additional through-bolt holes.
COMPLIANCES: Grade I, heavy duty cylindrical
lockset, UL listed and FCC certified. ADA
compliant leversets
Questions? Please Call Customer Service 1-954-776-5340
|
