| Item No: |
OMN-9163/916335TP |
| List Price: |
$207.00 |
| Your Price: |
$165.60 |

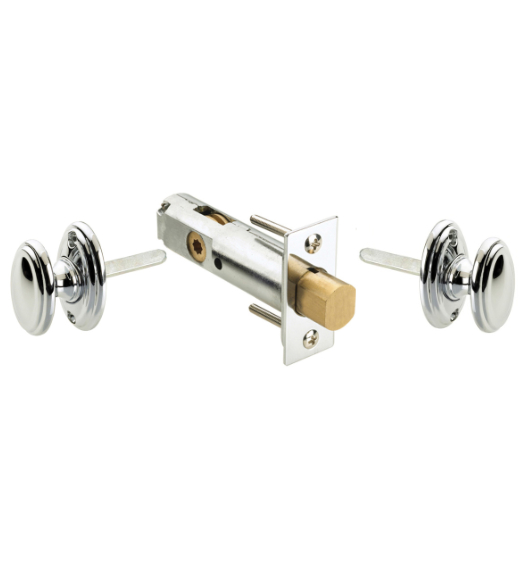

Omnia 9163/916335TP, Beveled Privacy Lock with Thumbturn on Both Sides
Omnia's 9163/916335TP Double Thumbturn Beveled Privacy Bolt features the classic beauty that is iconic of traditional decor--simple yet timelessly elegant. Privacy bolts are most often used on bedrooms and bathrooms. For doors 1-3/8 inches to 2-1/4 inches thick with 2-3/8 inch backsets. Spindles will need to be trimmed to fit thinner doors.
Double Thumbturn: Locks and unlocks via the turnpiece on either side of the door.
Specifications for the Omnia Traditional Beveled Double Thumbturn Privacy Door Bolt:
- Material: Solid Brass
- Rose Height (both interior and exterior): 1-9/16"
- Rose Width (both interior and exterior): 1-1/16"
- Interior Projection: 1-1/16"
- Exterior Projection: 1-1/16"
- Faceplate Height: 2-1/4"
- Faceplate Width: 1"
- Strike Plate Height: 2-3/4"
- Strike Plate Width: 1-1/8"
- Bolt: 9/16" throw solid brass bolt
- Door Thickness: 1-3/8" - 2-1/4"
- Backset: 2-3/8"
- Includes: faceplate, strike, dustbox, bolt, (2) rosettes, and (2) turnpieces.
Will not cover a 2-1/8" pre-drilled door borehole.
|
