Packaged complete with a Pair (2) Single Action Spring Door Hinges plus #12 x 1-1/4" wood screws and 12-24 x 1/2" machine screws. Non-template screw hole pattern for use on metal or wood doors (ANSI K81011F). This is a replacement for Bommer 4010-6-600 hinge.

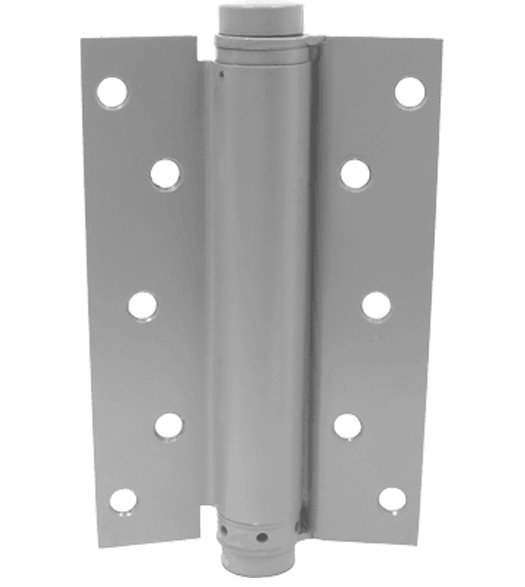

Specifications for the PBB SA8160 6" Spring Hinge:

• Hinge Material: Durable Steel
• Height: 6"
• Width: 4-1/2”
• Corners: Square Corners
• Gauge of Metal: .100
• Screws size: FHMS - 12-24 x 1/2” and FHWS - 12 x 1-1/4”
• Door Weight: 125 lbs
• Door Thickness: 1-1/4" - 1-3/4" Thick Doors
• Non-Handed
• BHMA Certified Grade 2.
• UL Listed For Fire Rated Door Applications
• Full Mortise - ANSI K81011F
• PBB SA8160 Dimensions Diagram (PDF)

PBB-SA8170 Hinge Selection for Maximum Door Size
PBB Hinge Number	2 Hinges		3 Hinges		Door Thickness
	Door Weight	Door Width	Door Weight	Door Width
SA8160	125 lbs	3'-0"	155 lbs	4'-0"	1-3/4"
Replacement for Bommer 4040-6 and 4010-6

Sold as a pair (2 Hinges).

Select Finish  600: Primer 652: Satin Chrome Add  $8.40
Quantity
