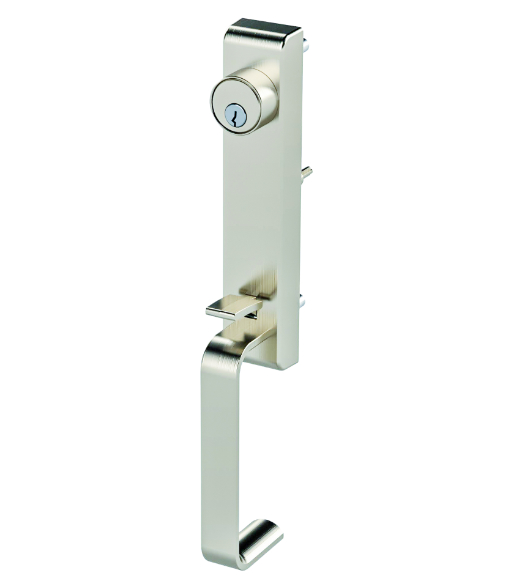

This is a Classroom Function Handleset (turning key unlocks thumb piece) for all Wide, Medium, and Narrow Stile Doors (aluminum framed, hollow metal, or wood). For use on door's exterior with Panic Device Hardware. Will not cover standard 2-1/8" bore hole prep.

For use with PDQ 6300 Series Rim Exit Device, 6300 Series Surface Vertical Rod Exit Device, and 6300 Series Narrow Stile Surface Vertical Rod Exit Device.

Packaged with mortise cylinder, mounting hardware, instructions, and 2 keys.

Features of PDQ 6-T-05 Classroom Function Handleset

• Classroom Function (ANSI F06) - Outside entrance by thumb press when unlocked by key. (Key locks or unlocks thumb piece).
• Overall Height: 14-1/4"
• Plate Height: 9"
• Plate Width: 1-13/16"
• Total Projection: 2-5/8"
• 1-1/8" Mortise Cylinder with Schlage C Keyway included
• Supplied with 2 keys
• PDQ 6-T Installation Template (PDF)
• Installation Instructions (PDF)

Available in your choice of Satin Stainless Steel, Dark Bronze, or Matte Black.

Select Finish  630: Satin Stainless Steel 613E: Dark Bronze Add  $17.22 622: Matte Black Add  $17.22
