| Item No: |
PBB-RS813535 |
| List Price: |
$16.00 |
| Your Price: |
$12.93 |

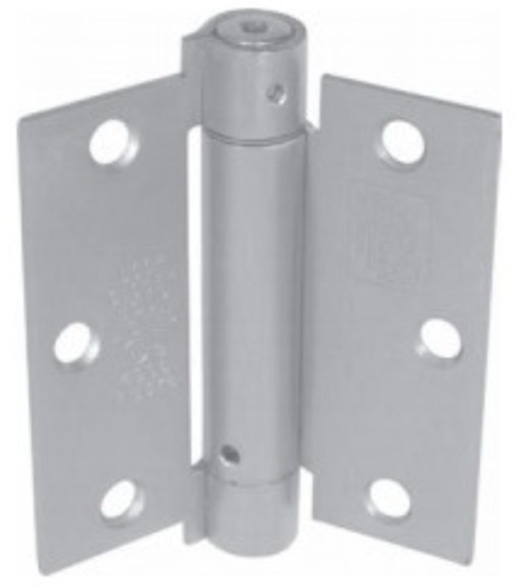

PBB RS813535, UL Listed Spring 3.5" x 3.5" Single Acting Spring Hinge
Packaged complete with a Single Action Spring Door Hinge and screws. This PBB spring hinges are UL Listed for fire door applications. Max door size: 2’6 ft x 7’0.ft x 1-3/4 inches.
Specifications for the PBB Full Mortise Spring Hinge:
- Hinge Material: Wrought Steel
- Height: 3.5"
- Width: 3.5"
- Height of Barrel: 4"
- UL Listed for Fire Doors
- Gauge of Metal: .100
- Standard Template Hole Pattern
- Wood Screws: #10 x 1"
- Machine Screws: #10-24 x 1/2”
- Adjustable Spring Torque
- Non-Handed
- Full Mortise - ANSI K81071F
- Maximum Door Size – 2’6” x 7’0” based on 3 hinges per door.
- PBB RS813535 Dimensions Diagram (PDF)
Sold Individually (1 Hinge).
|
