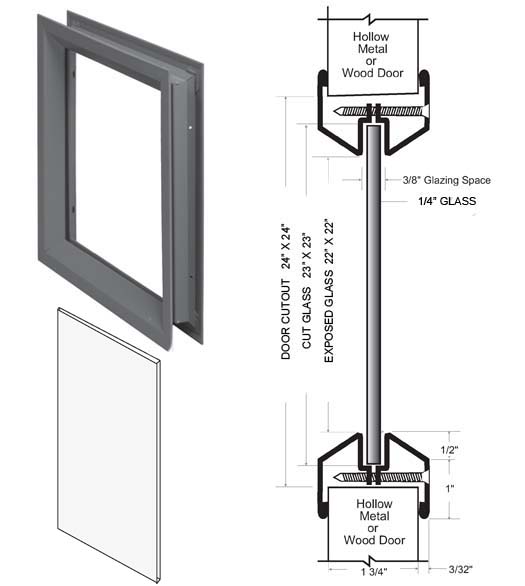

For 24" x 24" door cutout. Low profile door lite kit with 1/4" thick clear tempered glass and glazing tape. Mitered and welded corners including reinforcing clips. For 1-3/4" thick, wood or hollow metal doors. Made in the USA.

The 1/4" thick tempered glass complies with IBC requirements for use in doors and is Impact safety-rated. Meets ANSI Z97.1 Class A and CPSC 16CFR 1201 (CAT I and II). Approximately 4 times stronger than annealed glass.

Gray primer powder coat finish. Packaged with #8 x 1-5/8 Phillips head sheet metal screws (SMS).

Specifications for NGP L-FRA100-24x24-Tempered Lite Kit

• Door Cut Out Width: 24"
• Door Cut Out Height: 24"
• Tempered Glass Width: 23"
• Tempered Glass Height: 23"
• Tempered Glass Thickness: 1/4"
• Frame Projection Off Door: 3/32"
• Door Thickness: 1-3/4" Thick Door
• Installation Screws: #8 x 1-5/8 Phillips head SMS
• NGP L-FRA100 Cutsheet (PDF)
• NGP 1/4" Tempered Clear Glass Cutsheet (PDF)

*Sold Individually.

Quantity
