−19%
Emtek

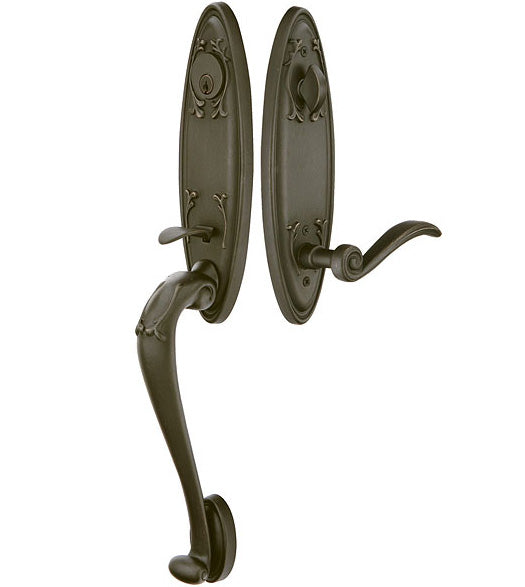

Tuscany Monolithic Handleset, Emtek 471112
$614.99
$768.00Save $153.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Tuscany Monolithic Handleset with Covered Deadbolt, EMT-471112, is designed for high-security entry applications. It accommodates door thicknesses ranging from 1-3/4" to 2-7/8" and fits either 2-3/8" or 2-3/4" backsets.
Constructed from Lost Wax Cast Bronze, this handleset features a Schlage C UL 180 minute fire rating. It is available configured as a full dummy set or a single cylinder function.
Dimensions & Fit
Door Thickness
1-3/4" - 2-7/8" please specify
Backset
either 2-3/8" or 2-3/4"
Material & Finish
Material
Cast Bronze
Other
Exterior Top Plate Height
10"
Exterior Top Plate Width
3"
Exterior Bottom Mount Height
3"
Exterior Bottom Mount Width
1-13/16"
Exterior Projection
3-9/32"
Exterior Grip Clearance
2-3/8"
Exterior Grip Thickness
1"
Interior Top Plate Height
10"
Interior Top Plate Width
3"
Distance between Deadbolt and Lever Latch
5-1/2" c.c.
Distance between Latch Bore to Bottom Mounting Hole
9-7/16" c.c.
Questions about this product? Call 954-776-5340 or send us a message below.
